Rear Clutch

DISASSEMBLY AND REASSEMBLY
Disassembly Service Point
Snap Ring Removal

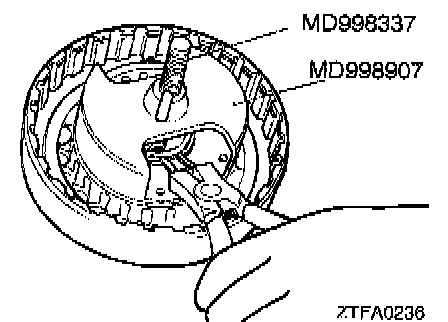

1. Compress the return spring with the special tool.
2. Using a screwdriver, remove the snap ring.

Reassembly Service Point
>A< Snap Ring Installation

1. Compress clutch reaction plate with the special tool.

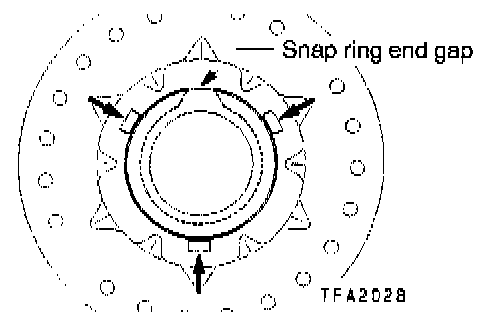

2. Install the snap ring so that the end gap may be positioned as illustrated.

>B< Clutch Pressure Plate / Clutch Plate / Clutch Reaction Plate Installation

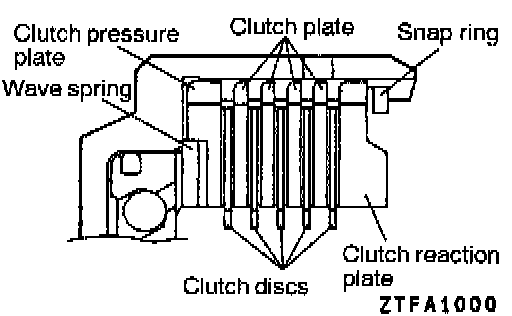

1. Install all the clutch plates and discs as shown in the illustration.

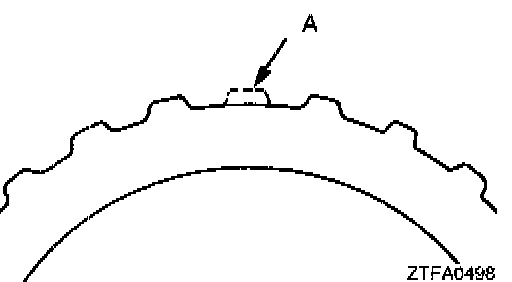

2. Install the clutch pressure plate, clutch plates and clutch reaction plate with their missing tooth portions (A in the illustration) in alignment.
3. If new clutch discs are to be used, soak them in ATF for more than 2 hours before assembling.

>C< Snap Ring Installation





1. Check clearance between the snap ring and clutch reaction plate. To check the clearance, hold the entire clutch reaction plate down with 50 N (11 lbs.) force. If clearance is out of standard value, select a snap ring to obtain the standard value.
Standard value: 1.0 - 1.2 mm (0.039 - 0.047 inch)

>D< Input Shaft Installation

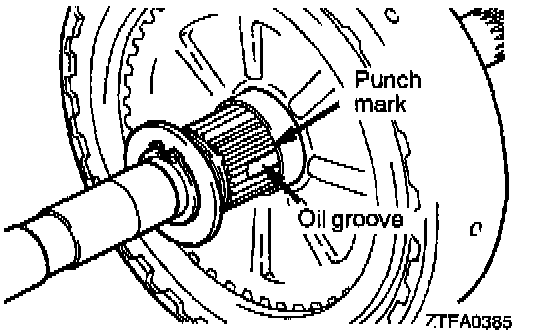

1. Install the input shaft with one of its oil groove aligned with the punch mark on the rear clutch retainer.
