Planetary Gear






DISASSEMBLY AND REASSEMBLY
Disassembly Service Point
Rivet Removal





1. Install the stopper plate so that its tab does not cover the groove A in the one-way clutch outer race. If it does, turn the stopper plate in either direction until the notch A is completely visible.

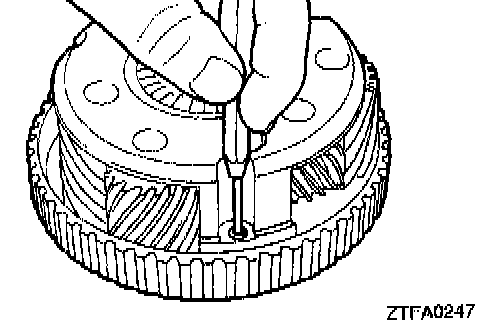

2. Using a pin punch, drive out the rivet.

Reassembly Service Point
>A< One-Way Clutch Installation

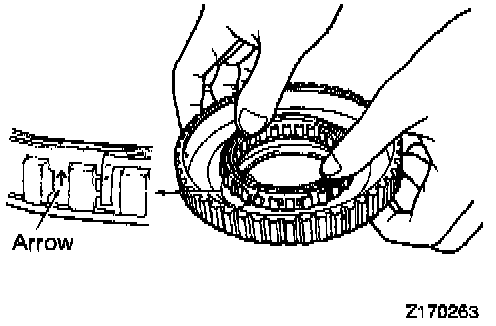

1. Push the one-way clutch into the outer race. Make sure that arrow on the outside circumference of cage is directed upward as shown in the illustration when the one-way clutch is pushed in.

>B< Spring Washer Installation





1. Install the spring washer to the rivet so that it faces as shown in the illustration.

>C< Rivet Installation

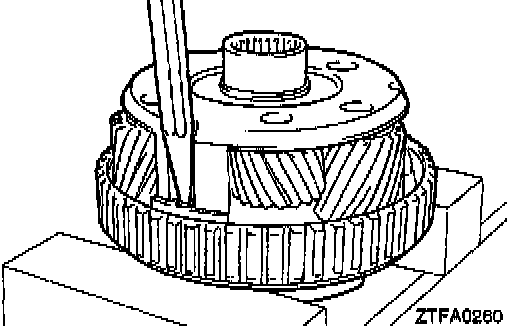

1. Stake the rivet using a punch and press.

NOTE:
1. Use a punch with a 60° tip angle.
2. Stake the rivet with a load of 11,000 - 13,000 N 2,425 - 2,866 lbs.).
