Seals and Gaskets: Service and Repair

DRIVE SHAFT OIL SEALS REPLACEMENT





1. Disconnect the drive shaft from the transaxle.
2. Using a flat-tip (-) screwdriver, remove the oil seal.





3. Using the special tool, tap the drive shaft oil seal into the transaxle.

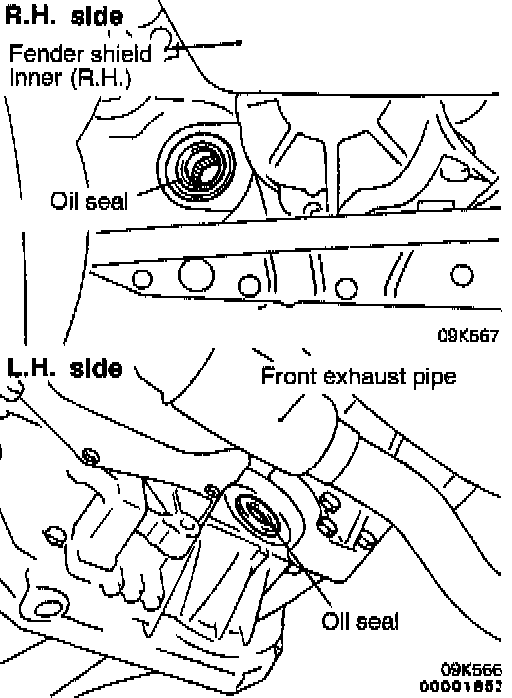

Note in illustration the direction of installation of drive shaft oil seal.
4. Apply a coating of the transmission fluid to the lip of the oil seal.
Transmission fluid: DIAMOND ATF SP-II, DIAMOND ATF SPII M or equivalent
