Removal and Installation
REMOVAL AND INSTALLATION
Removal Service Points

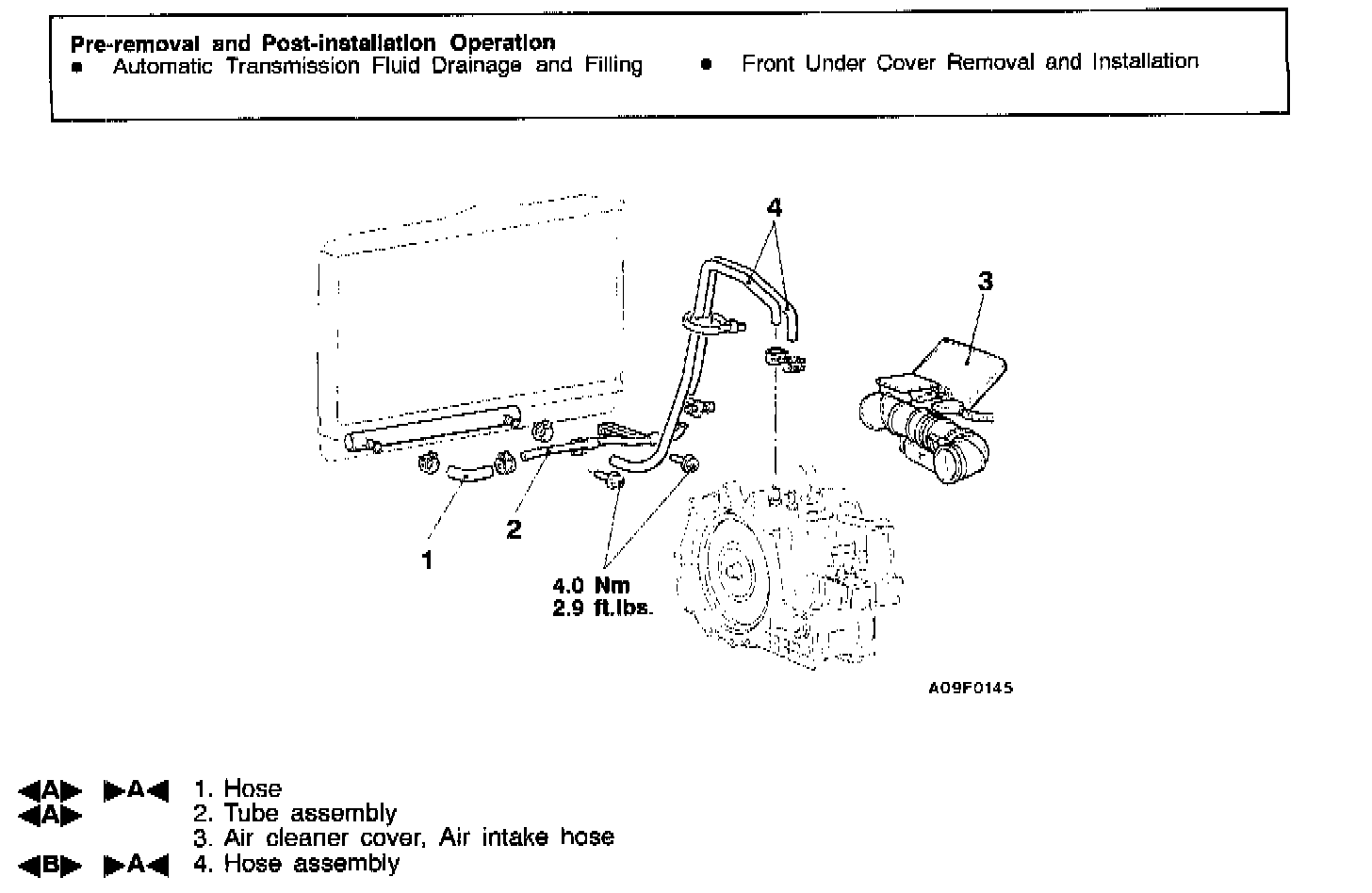

Hose / Tube Assembly
CAUTION: Be careful not to spill the transmission fluid when removing components.
Hose Assembly Removal
CAUTION:
1. When removing the hose assembly, be careful not to allow the transmission fluid to spill.
2. After removing the hose assembly, plug so that foreign materials cannot enter the transaxle.
Installation Service Points
>A< Hose Assembly / Hose Installation
CAUTION: Two types of hose clip, that is, single leaf spring type and double leaf spring type, are used for securing the hose and the hose assembly.
Before installing clips, be sure to verify the type and the installation position.
Both ends of the hose and oil cooler end of the hose assembly: use single leaf spring type clips
Transaxle end of the hose assembly: use a double leaf spring type clip.

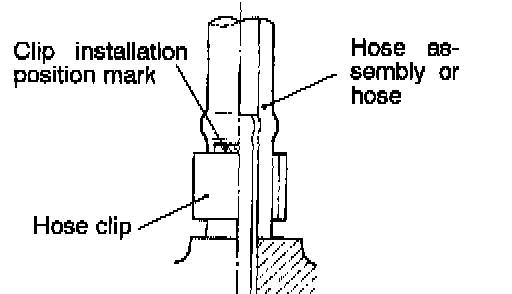

Install hose clips in such a way that they may not cover the clip installation position mark, as shown in the illustration.
INSPECTION
- Check the hose for crack, damage and clog.
- Check for rusted or clogged radiator oil cooler.
