Thrust Washer Set, Pressure Plate, Snap Rings and Spacers
THRUST WASHER SET, PRESSURE PLATE, SNAP RINGS AND SPACERS ADJUSTMENT

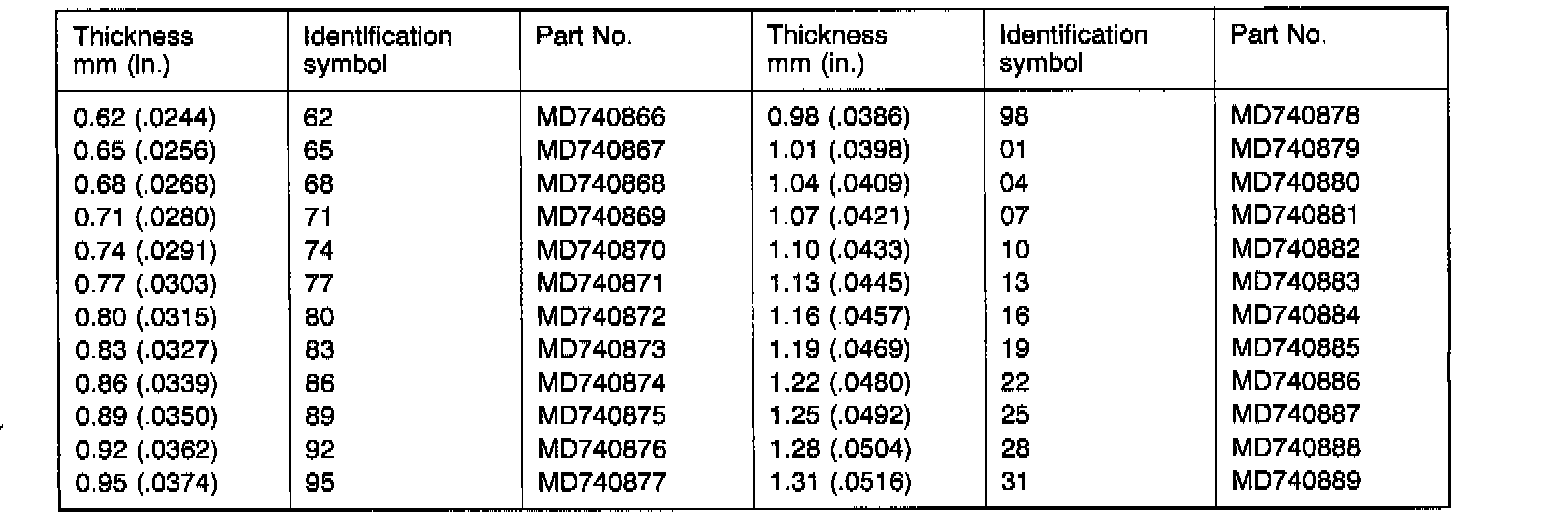

Thrust washer set (For adjustment of input shaft end play)

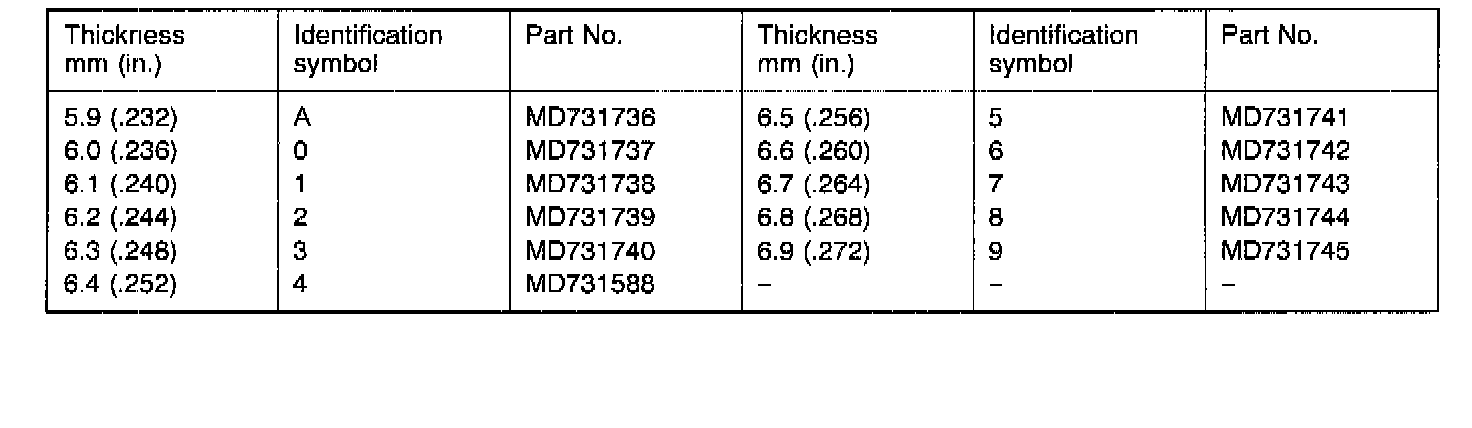

Pressure plate (For adjustment of low-reverse brake end play)

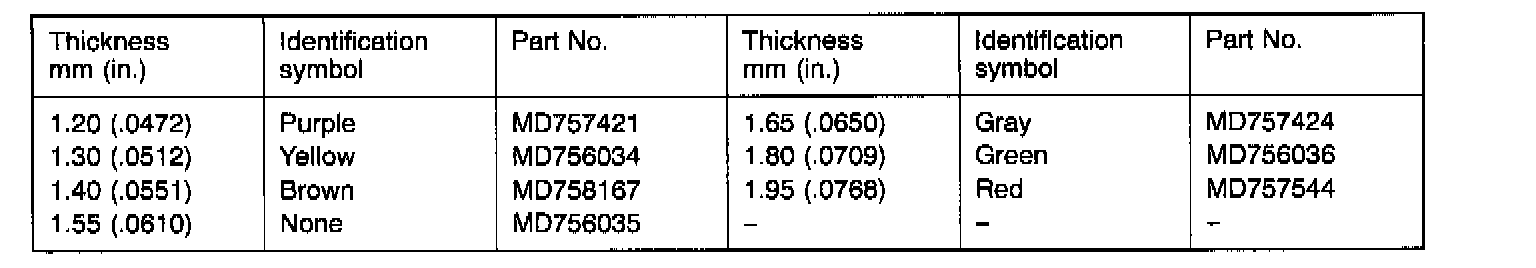

Snap ring (For adjustment of front clutch and rear clutch end play)

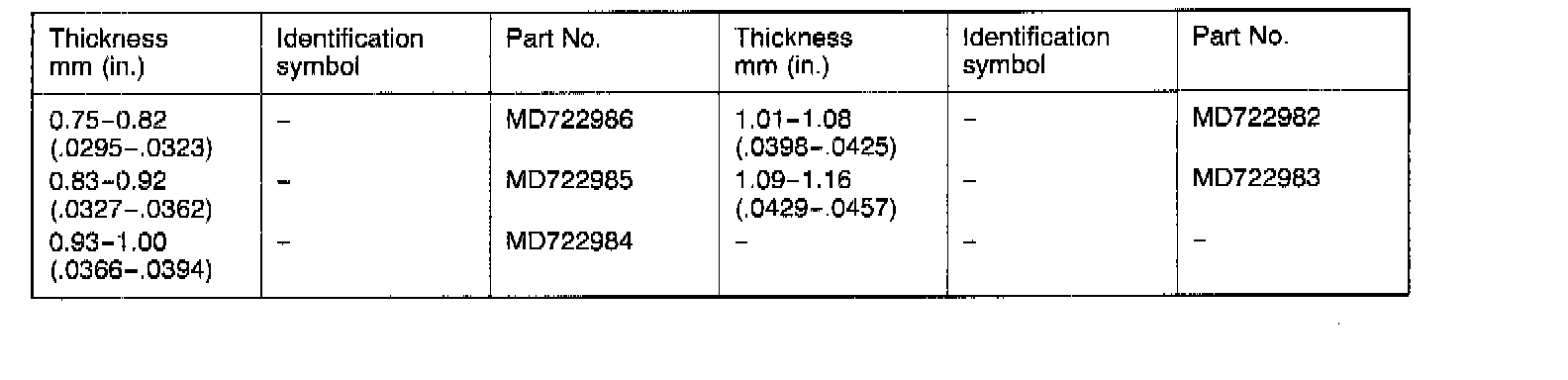

Snap ring (For adjustment of end clutch end play)

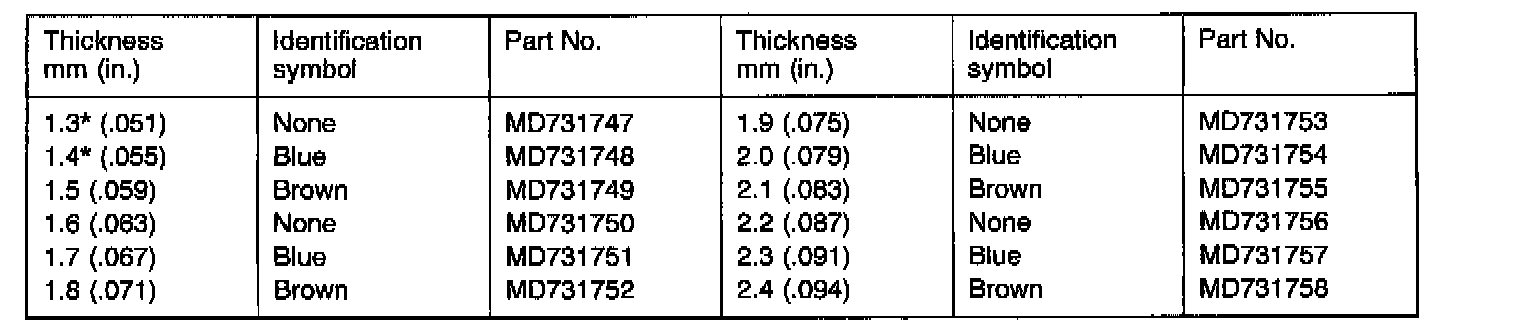

Spacer (For adjustment of differential case preload)

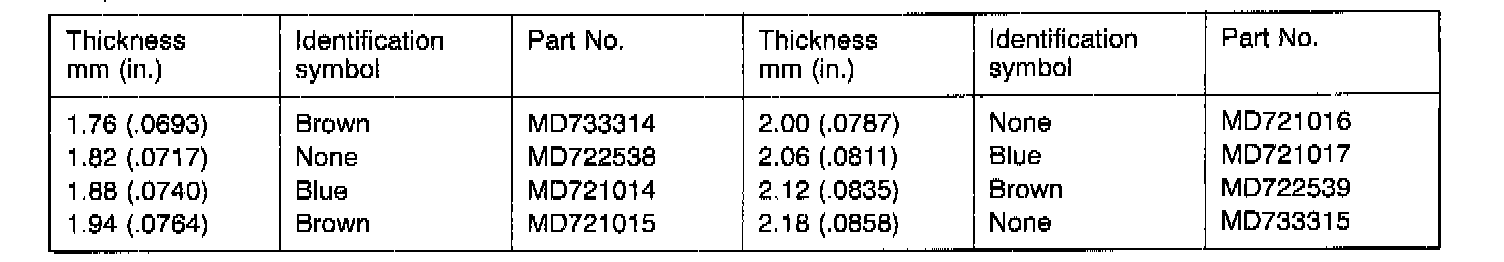

Spacer (For adjustment of transfer driven gear preload)
Snap ring (For adjustment of output flange bearing end play)

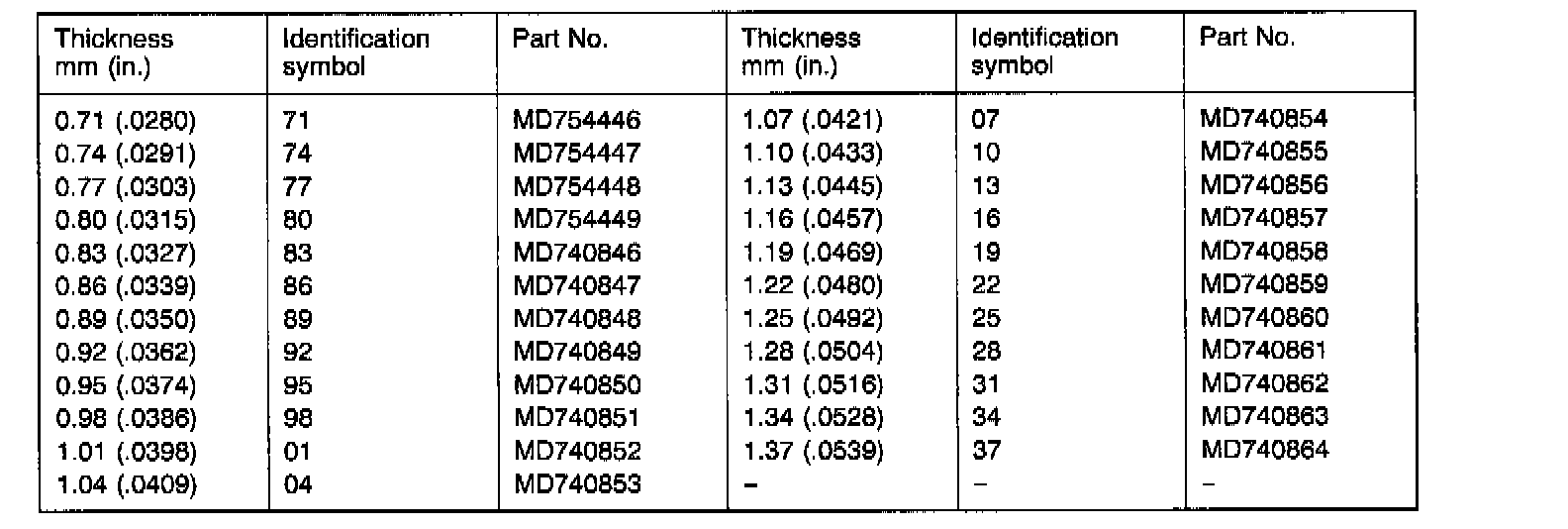

Spacer (For adjustment of differential gear and pinion backlash)
