GENERAL INFORMATION

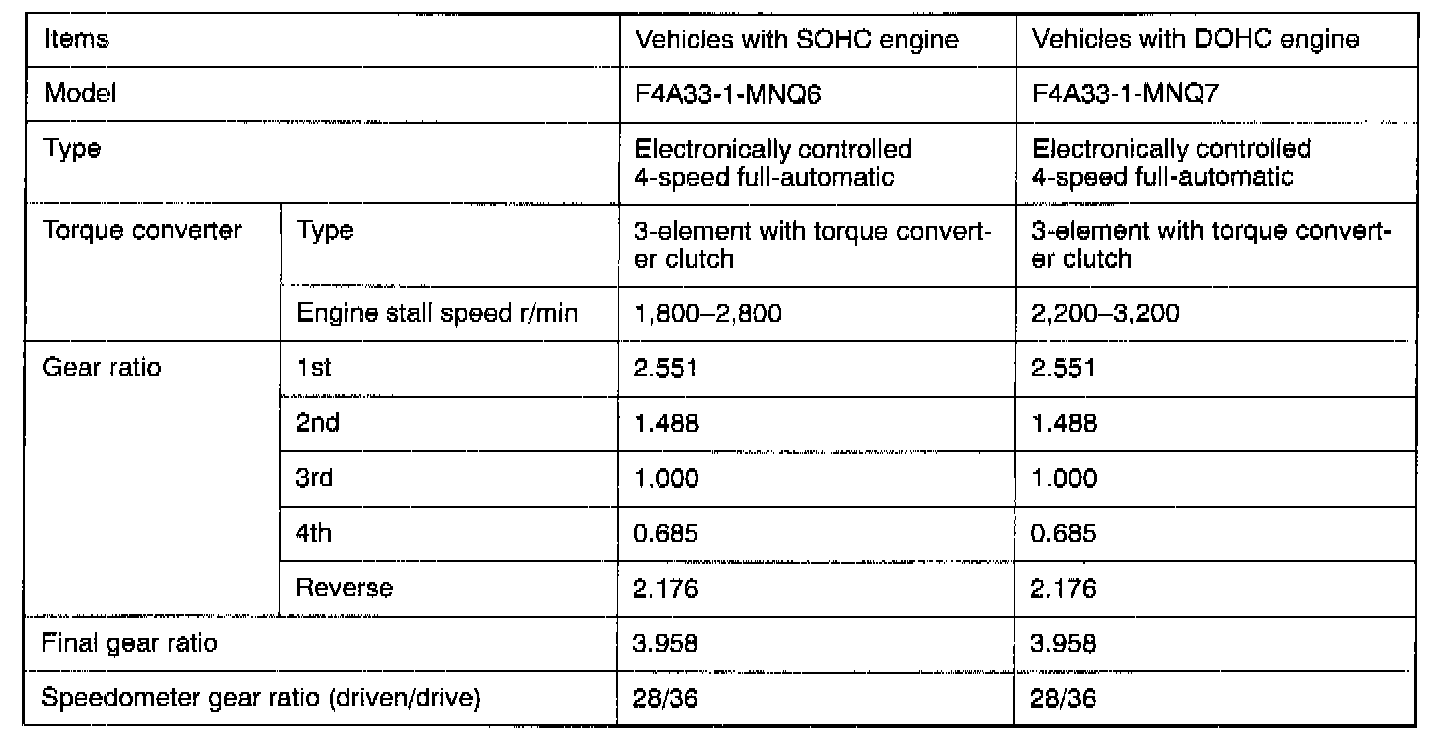

The automatic transaxle comes in one model, namely, F4A33. The transaxle is essentially the same as the conventional model.

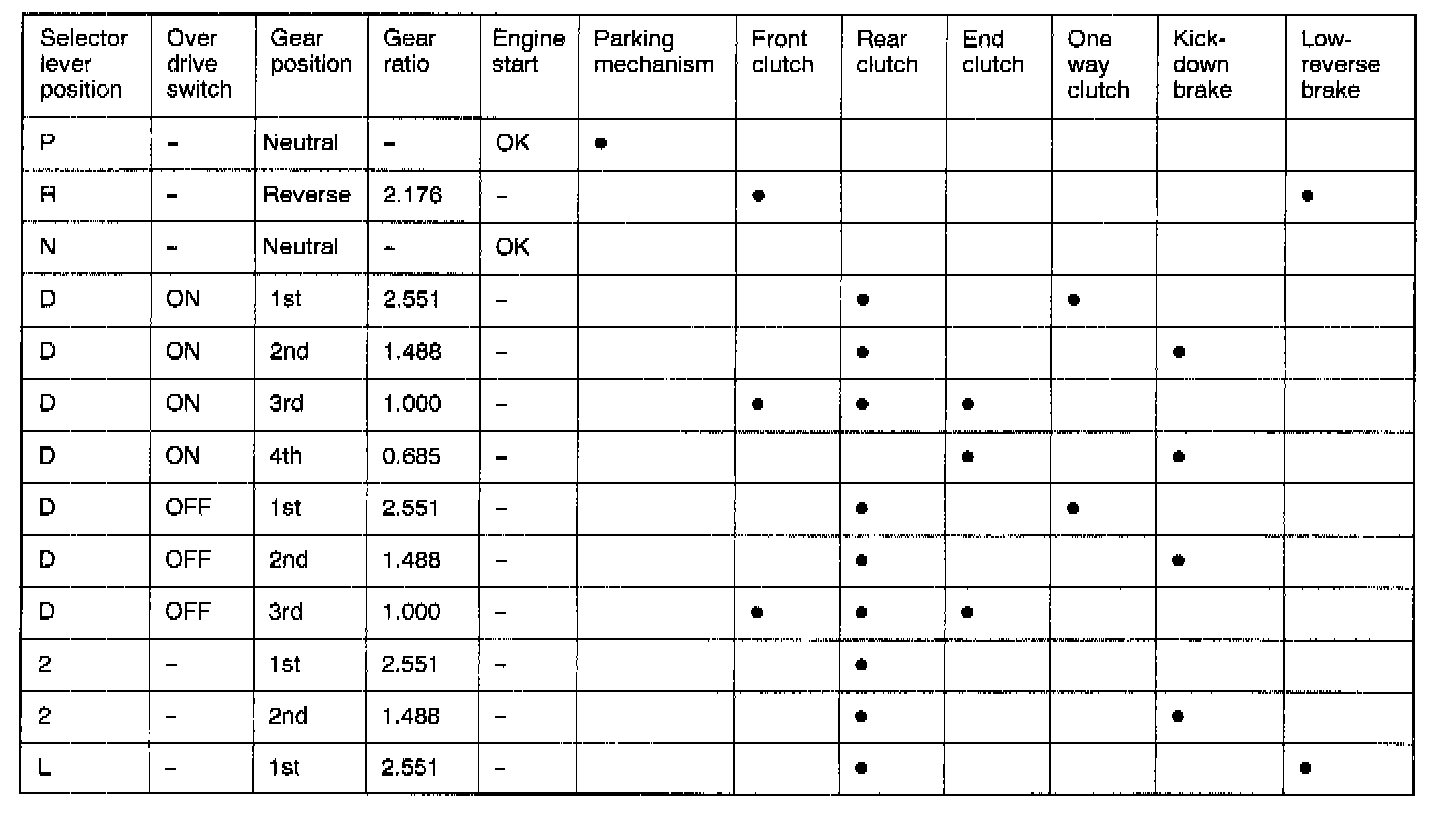

FUNCTION ELEMENT TABLE

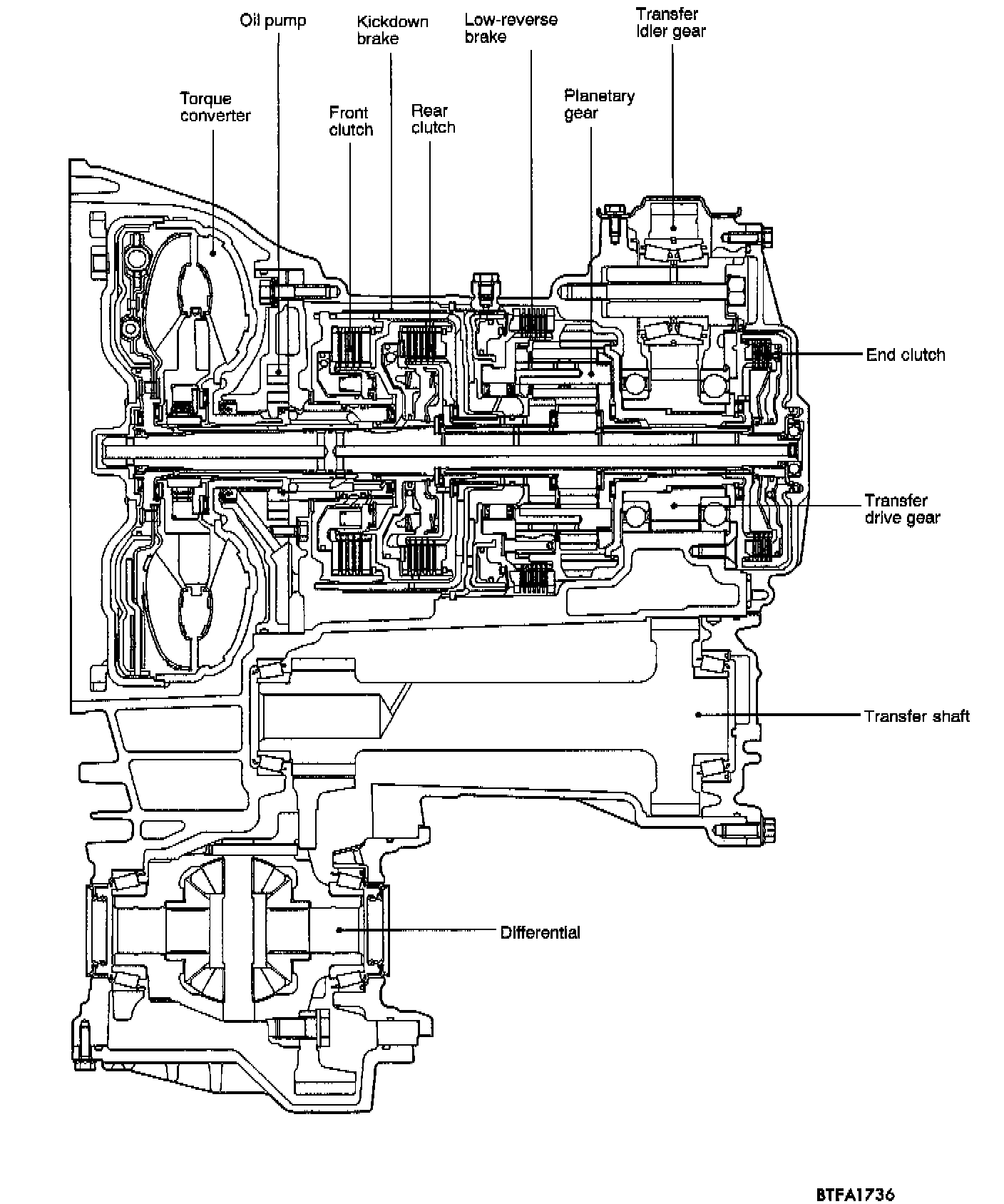

SECTIONAL VIEW
