Suspension: Service and Repair

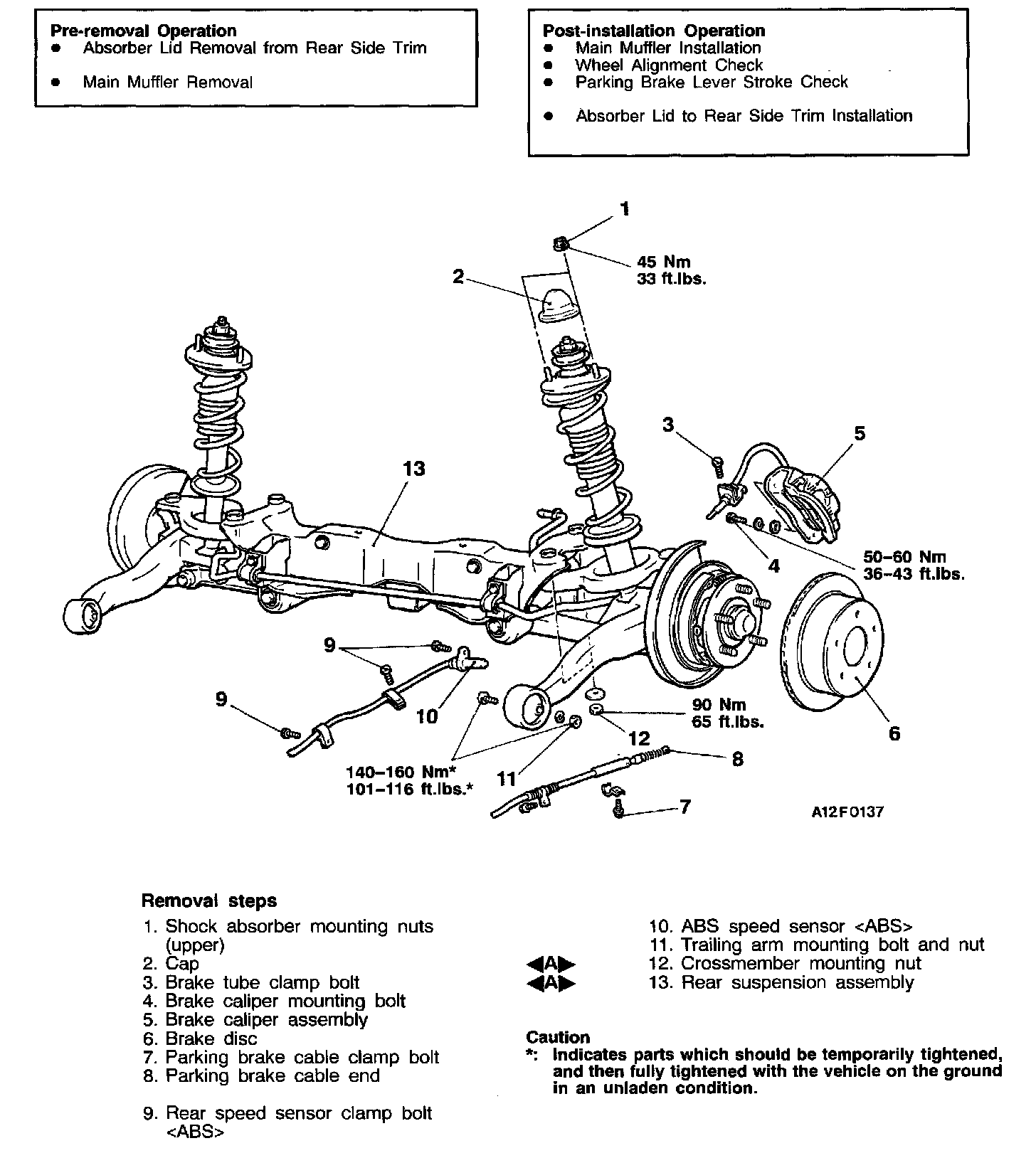

REMOVAL AND INSTALLATION
Removal Service Point

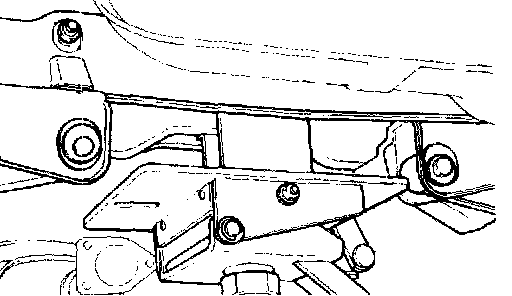

[A]Crossmember Mounting Nut / Rear Suspension Assembly Removal





Support the crossmember with a transmission jack, then remove the crossmember mounting nut and rear suspension assembly.

INSPECTION
- Check the crossmember for cracks or deformation.
- Check the bushings for cracks or deterioration.
