Key Reminder Switch: Testing and Inspection

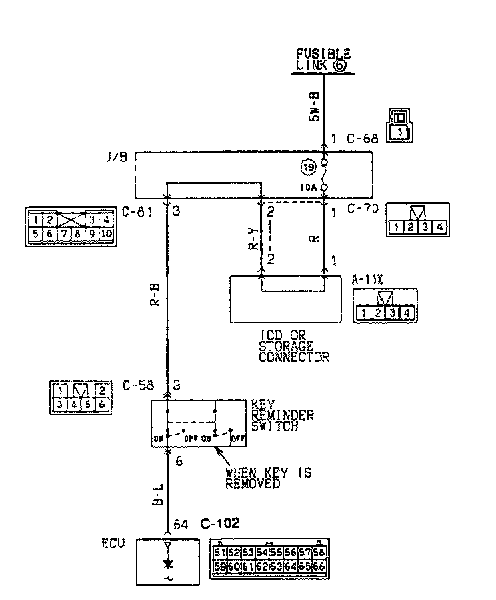

KEY-REMINDER SWITCH INPUT CIRCUIT

Description of operation
The key-reminder switch is switched OFF and HIGH-level signals are sent to the ECU when the key is inserted into the ignition key cylinder: when the key is removed, the key-reminder switch is switched ON and LOW-level signals are sent to the ECU.

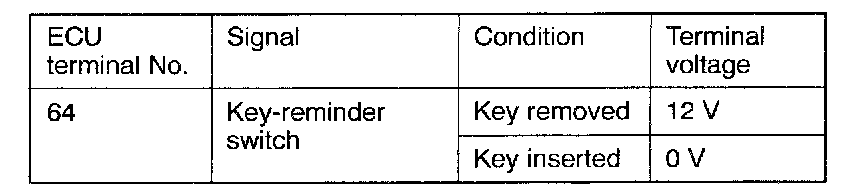

ECU terminal voltage (Connection condition of the ECU connector).
