Power Window Relay: Testing and Inspection

POWER WINDOW RELAY CHECK
1. Remove the knee protector assembly.

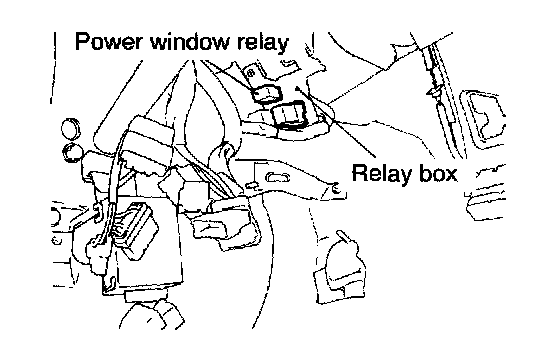

2. Remove the power window relay from indoor relay box.

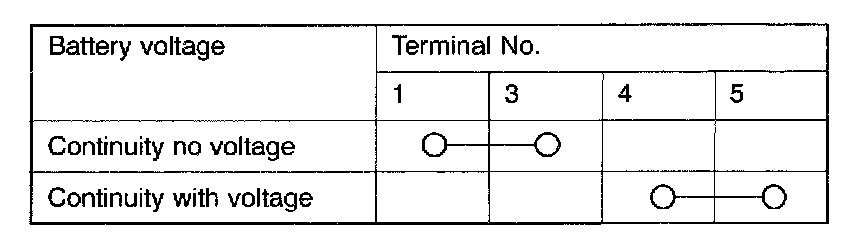

3. Apply battery voltage to terminal 1, and check for continuity when terminal 3 is grounded.
