Fog/Driving Lamp Relay: Testing and Inspection

HEADLIGHT RELAY / TAILLIGHT RELAY / FOG LIGHT RELAY CHECK

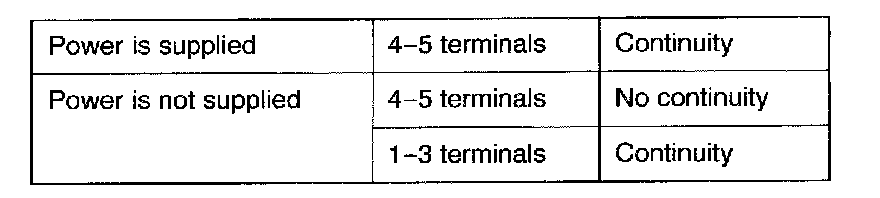

Connect battery to terminal 1 and check continuity between terminals with terminal 3 grounded.
