Radiator Cooling Fan Motor Relay: Testing and Inspection

Radiator Fan Motor Relay Check

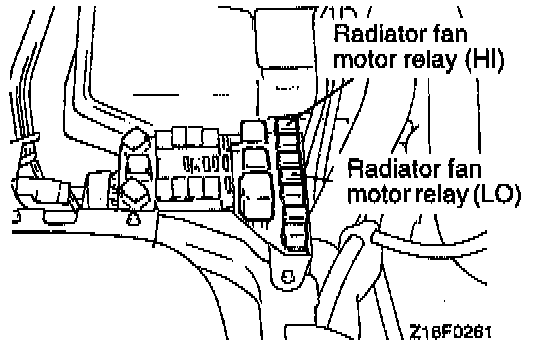

1. Remove radiator fan motor relay from the relay box located at the right side in the engine compartment.

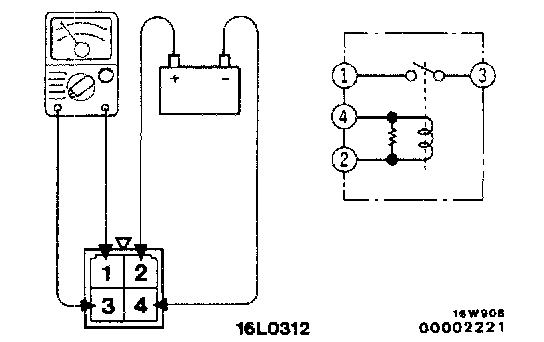

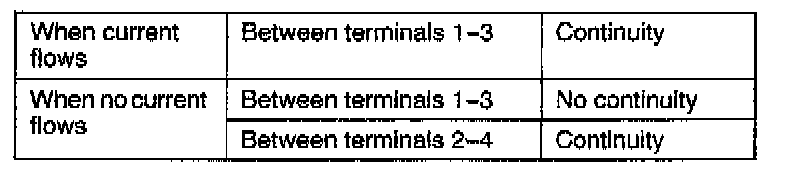

2. Check for continuity between the terminals when the battery power-supply is applied to terminal 2, and terminal 4 is grounded.
