Air Cleaner Housing: Service and Repair

REMOVAL AND INSTALLATION

Installation Service Points

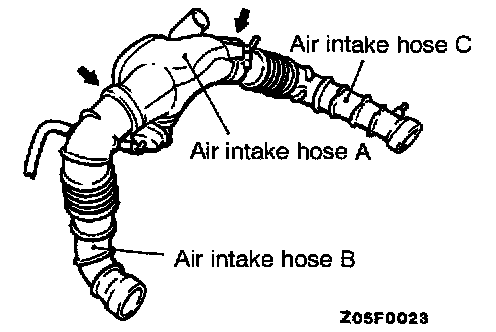

>A< Air Intake Hose C / Air Intake Hose B / Air Intake Hose A, Turbocharger By-Pass Valve And Air By-Pass Hose Installation





Engaging the notch with the (Triangle) mark at points indicated by the arrows, insert air intake hoses B and C until seated. Insert the turbocharger end of air intake hoses B and C completely.

INSPECTION
- Check the air cleaner body, cover or packing for deformation, corrosion or damage.
- Check the air duct for damage.
- Check the air cleaner element for clogging, contamination or damage. If element is slightly clogged, remove dust by blowing air from inside of element.
