A/C

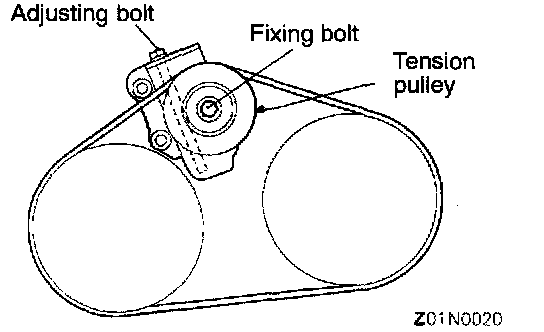

Air Conditioning Compressor Drive Belt Tension Adjustment





1. Loosen the tension pulley fixing bolt.
2. Adjust belt deflection with the adjusting bolt.
3. Tighten the fixing bolt.
4. Run the engine one time or more.
5. Check the belt tension. Readjust, if necessary.
