Turn Signal Switch: Testing and Inspection

TURN SIGNAL SWITCH CHECK
1. Remove the knee protector and the column cover.

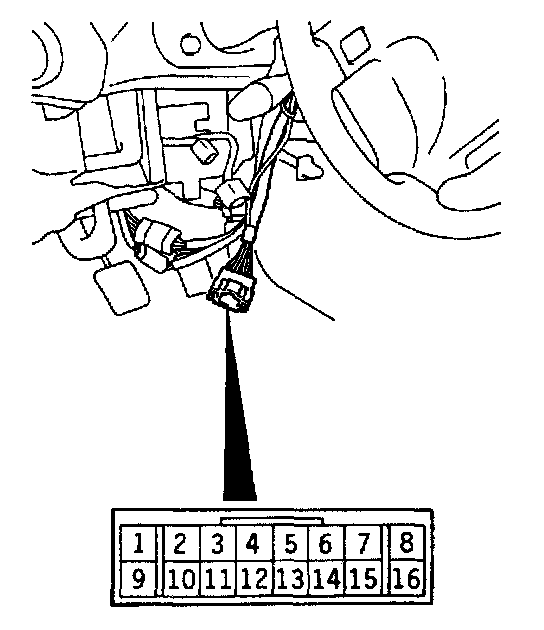

2. Disconnect the column switch left connector (16 terminals) and check the continuity between the terminals for each switch.

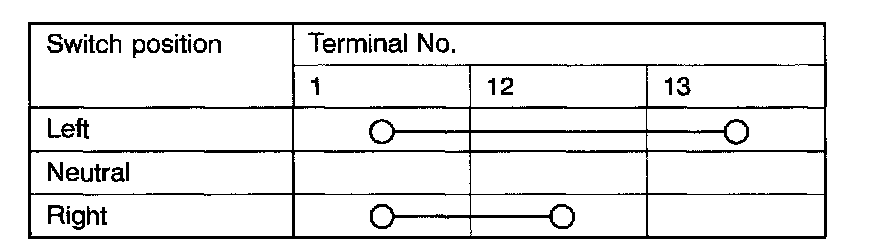

Operate the switch and check the continuity between the terminals.
