Component Tests and General Diagnostics

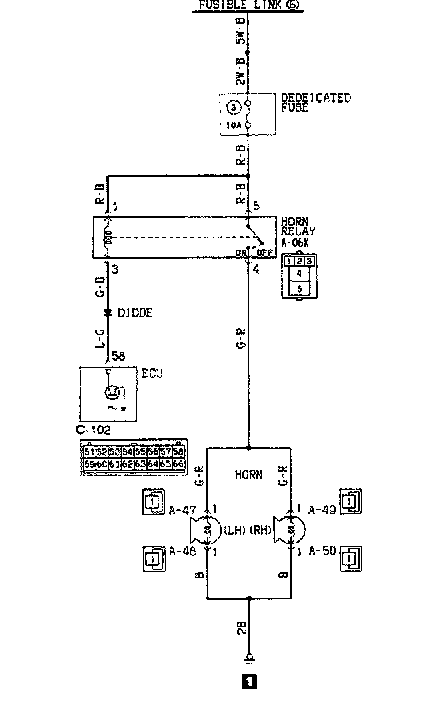

HORN ACTIVATION CIRCUIT

Description of operation
The ECU transistor is turned ON lithe vehicle door, etc. are opened without use of the key.
This energizes the horn relay to activate the horn.

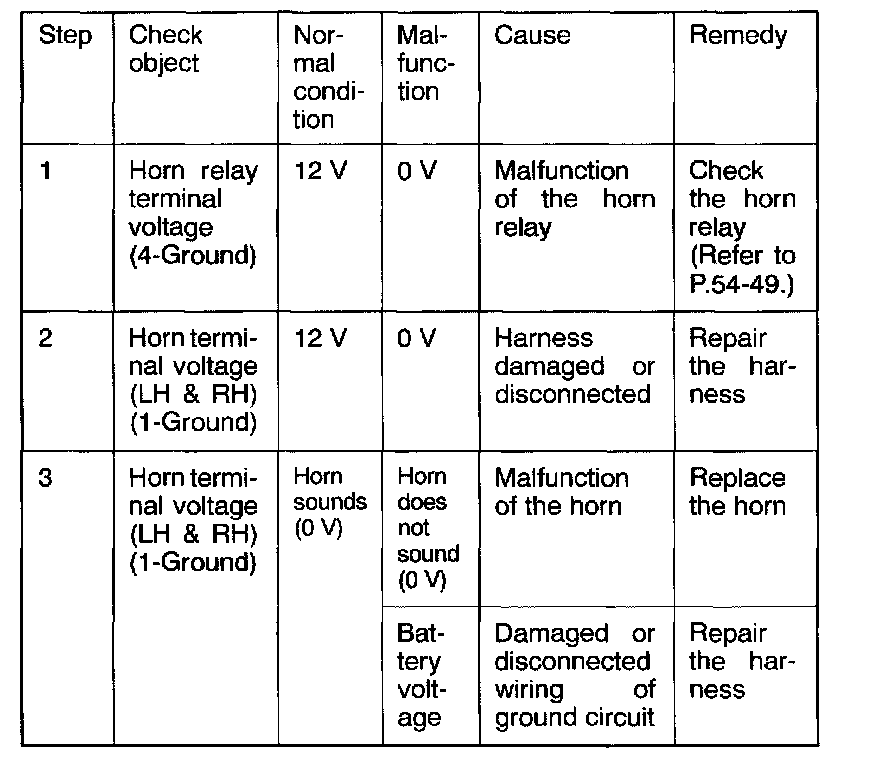

Checking the horn activation circuit (Disconnect the connector of the ECU, then short-circuit terminal connector No.58, and activate the horn relay.)
