Checking the Circuit and Individual Part

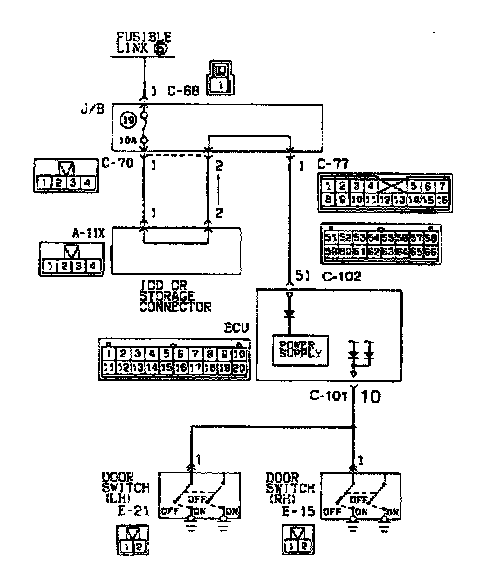

DOOR SWITCH INPUT CIRCUIT

Description of operation
When the door is closed (the door switch is switched OFF),
HIGH-level signals are sent to the ECU:
When the door is opened (the door switch is switched ON),
LOW-level signals are sent to the ECU.

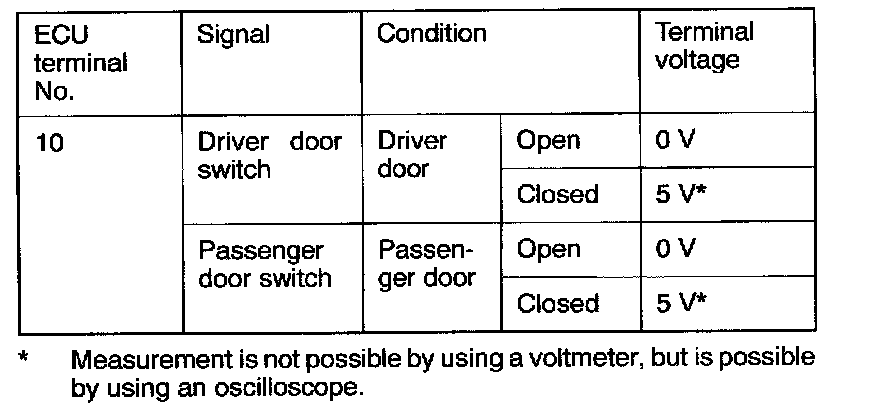

ECU terminal voltage (Connection condition of the ECU).
