Pinout Values and Diagnostic Parameters

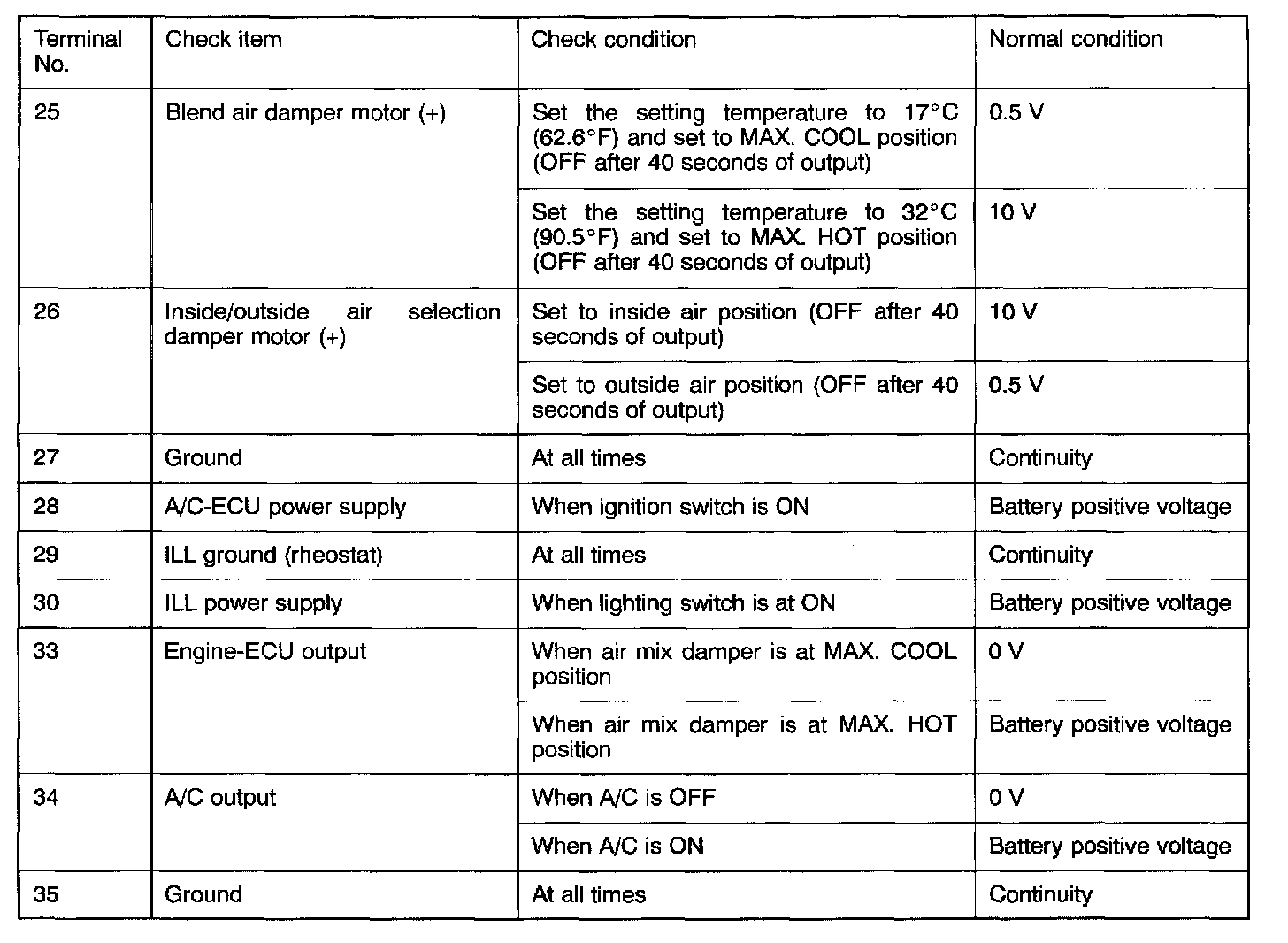

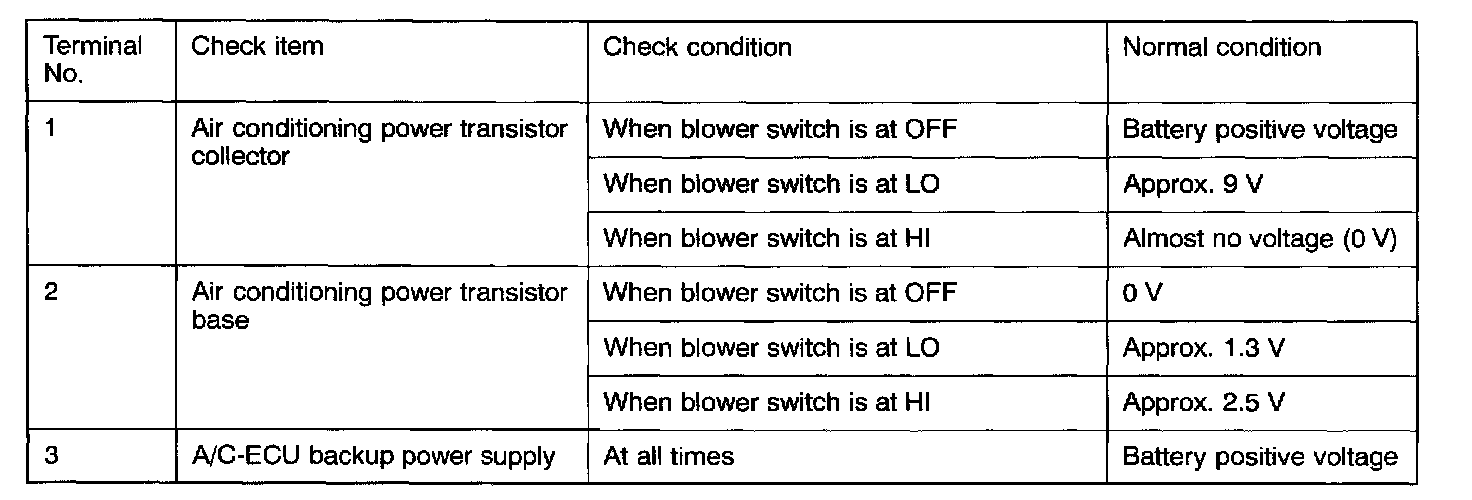

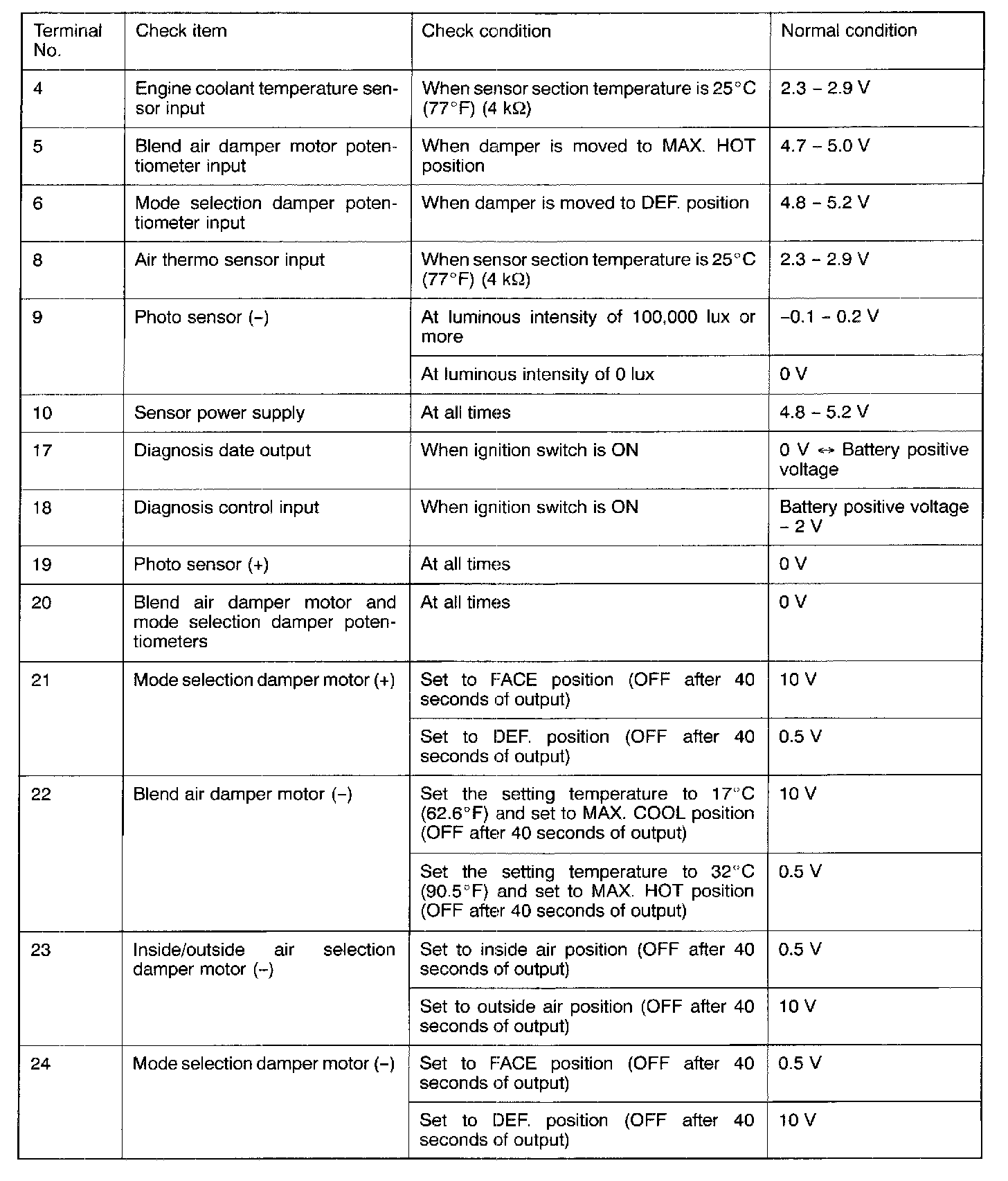

CHECK AT THE A/C-ECU TERMINALS

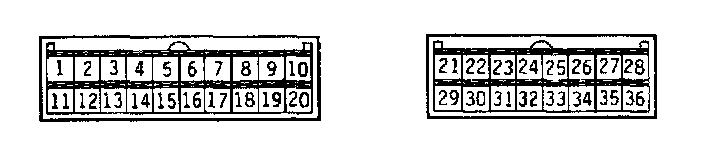

Connector Views:
Part 1 of 3:
Part 2 of 3:
Part 3 Of 3:
