Hose/Line HVAC: Service and Repair

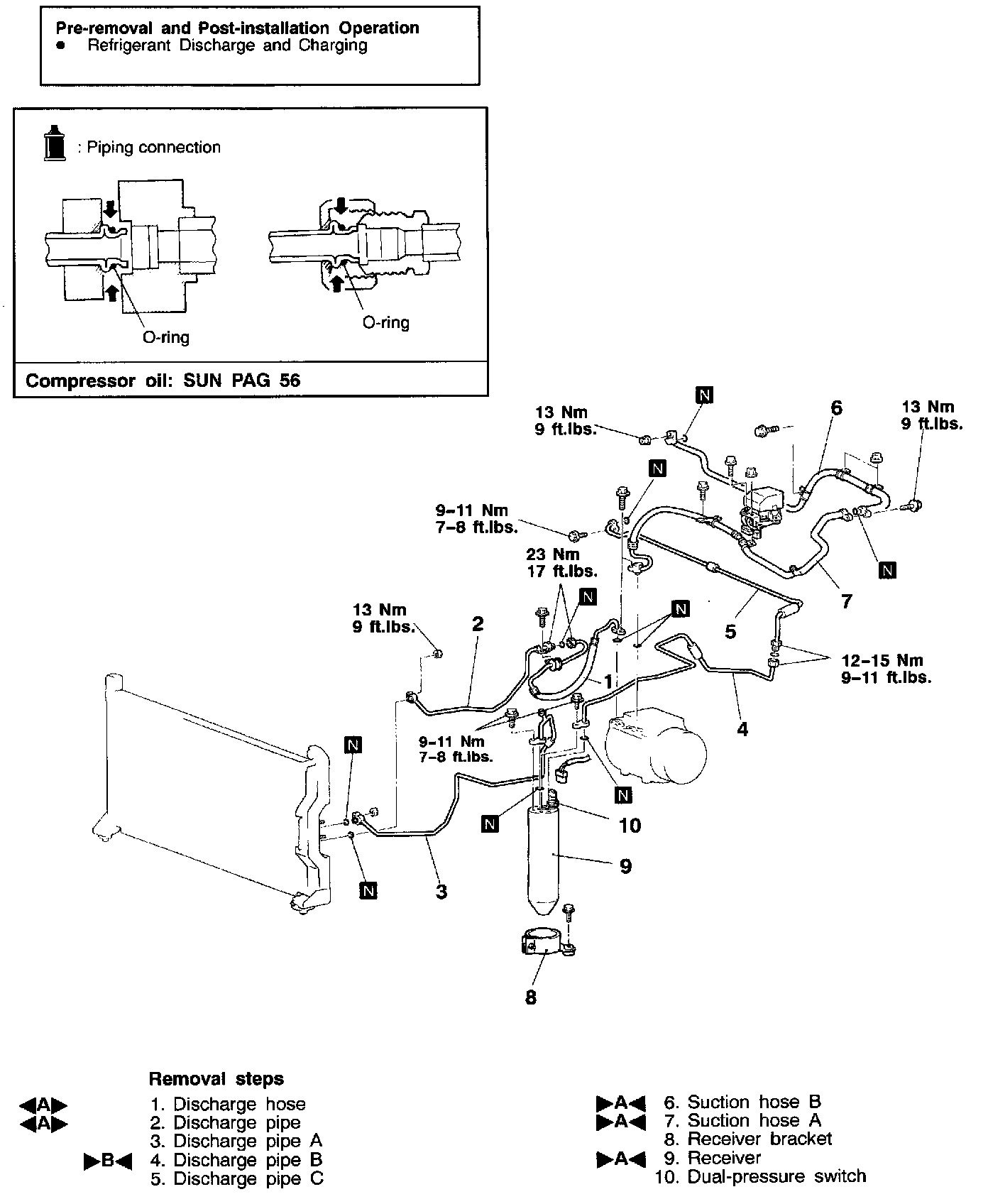

REMOVAL AND INSTALLATION

REMOVAL SERVICE POINTS

DISCHARGE HOSE / DISCHARGE PIPE REMOVAL

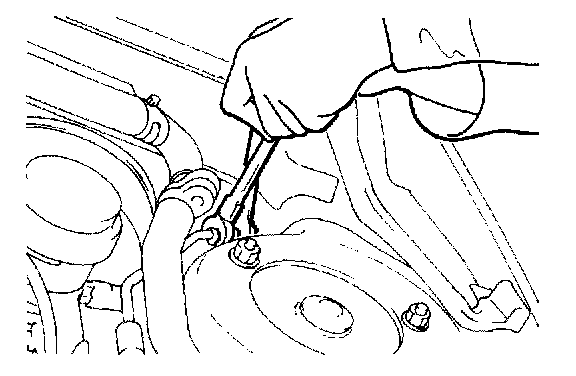

Loosen the flare nut by using two wrenches.

INSTALLATION SERVICE POINTS

>A< RECEIVER / SUCTION HOSE INSTALLATION
If suction hose is replaced with new ones, or if a new receiver is installed, pour the specified amount of oil in the compressor before installing these parts in the vehicle.

Compressor oil: SUN PAG 56
Quantity
Suction hose: 10 Cubic.cm (.3 fl.oz.)
Receiver: 10 Cubic.cm (.3 fl.oz.)

>B< DISCHARGE PIPE B INSTALLATION
Connect discharge pipe B first on the receiver side.
