Heater Core: Service and Repair
REMOVAL AND INSTALLATION
REMOVAL SERVICE POINT
EVAPORATOR MOUNTING BOLT REMOVAL

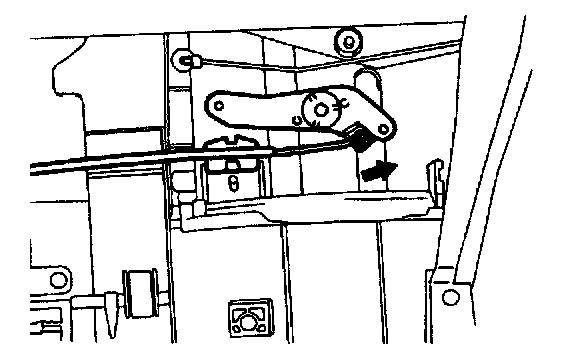

NOTE: In order to prevent bolts from falling into the blower assembly, set the air-selection damper to the position that permits outside air introduction.
