Removal and Installation

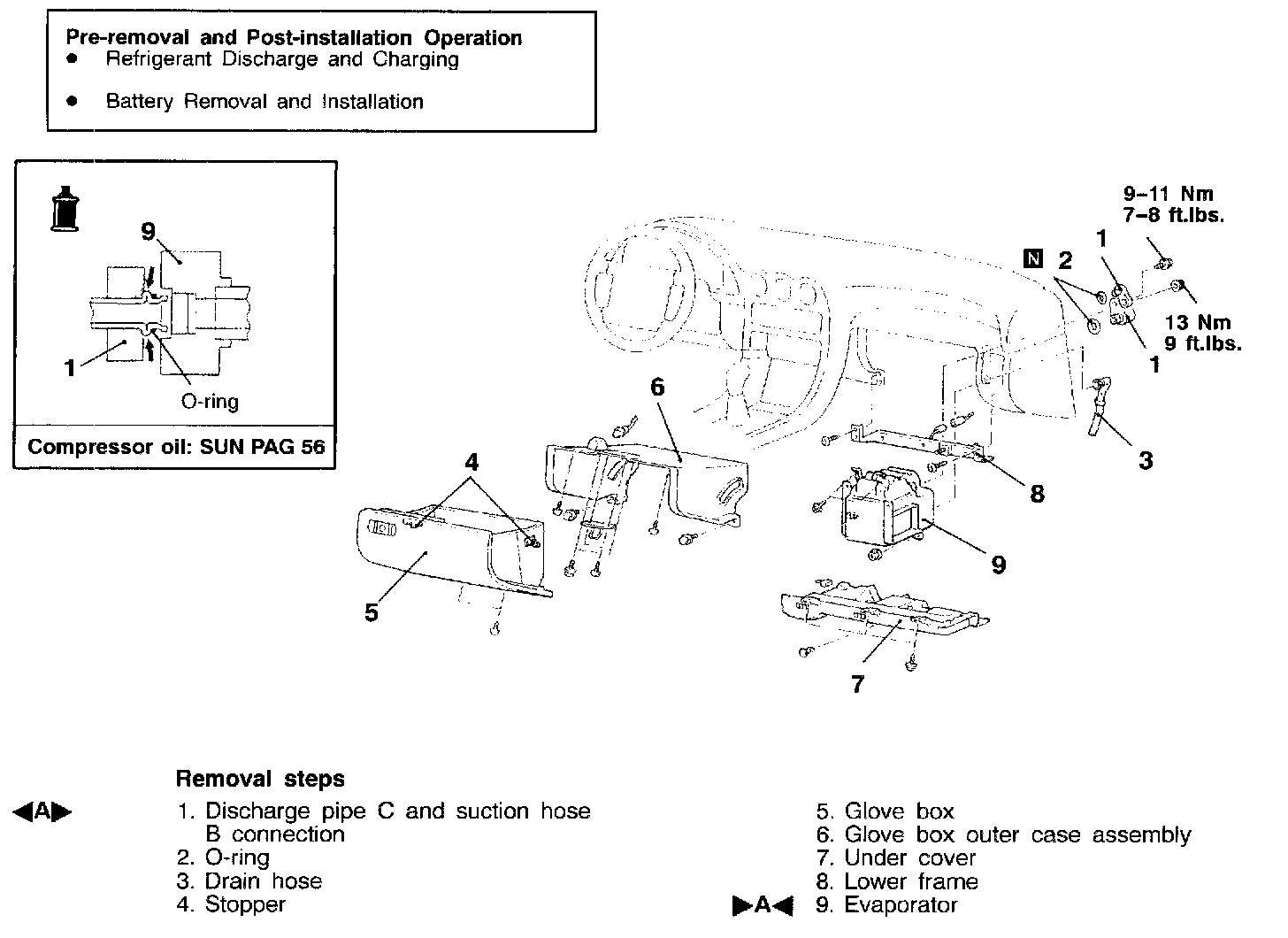

REMOVAL AND INSTALLATION

REMOVAL SERVICE POINT

DISCHARGE PIPE C AND SUCTION HOSE B DISCONNECTION
If the hoses or pipes are disconnected, cap the hoses or pipes with a blank plug to prevent entry of dust, dirt, and water.

INSTALLATION SERVICE POINT

>A< EVAPORATOR INSTALLATION
If a new evaporator is used, fill it with the specified amount of compressor oil before installing on the vehicle.
Compressor oil: SUN PAG 56
Quantity: 60 Cubic.cm (2.0 fl.oz.)
