Disassembly and Reassembly




DISASSEMBLY AND REASSEMBLY

DISASSEMBLY SERVICE POINTS

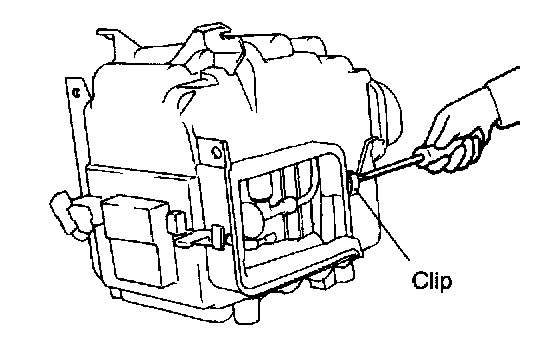

CLIPS REMOVAL
Remove the clips with a screwdriver covered with a shop towel to prevent damage to case surfaces.

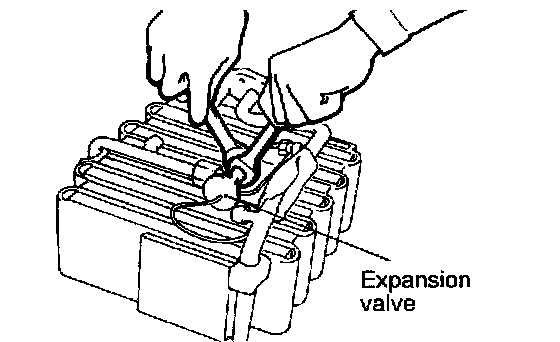

EXPANSION VALVE REMOVAL
Loosen the flare nut by using two wrenches (for both the inlet and outlet).
