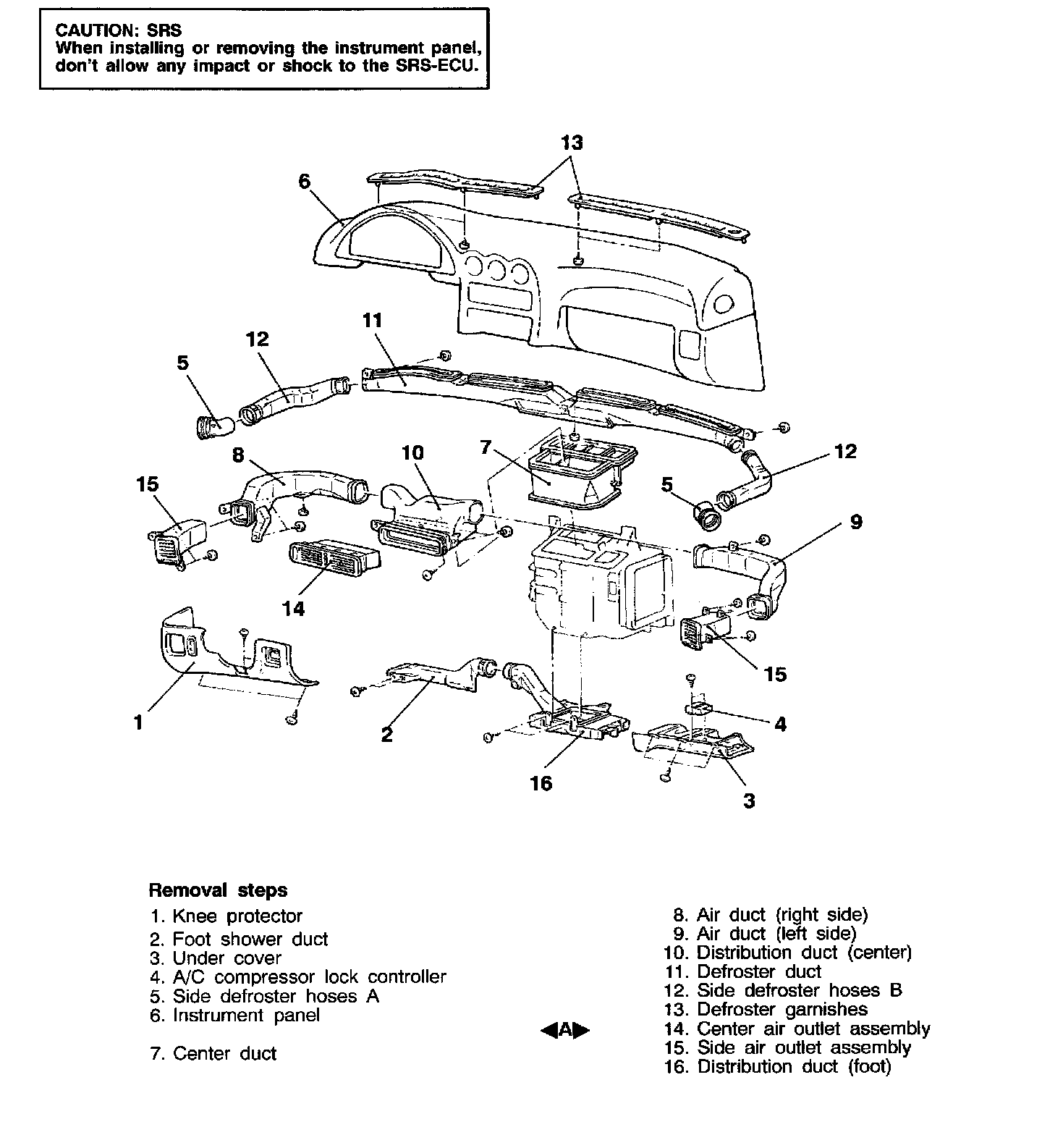

Ventilators (Instrument Panel)
REMOVAL AND INSTALLATION
CENTER AIR OUTLET ASSEMBLY REMOVAL

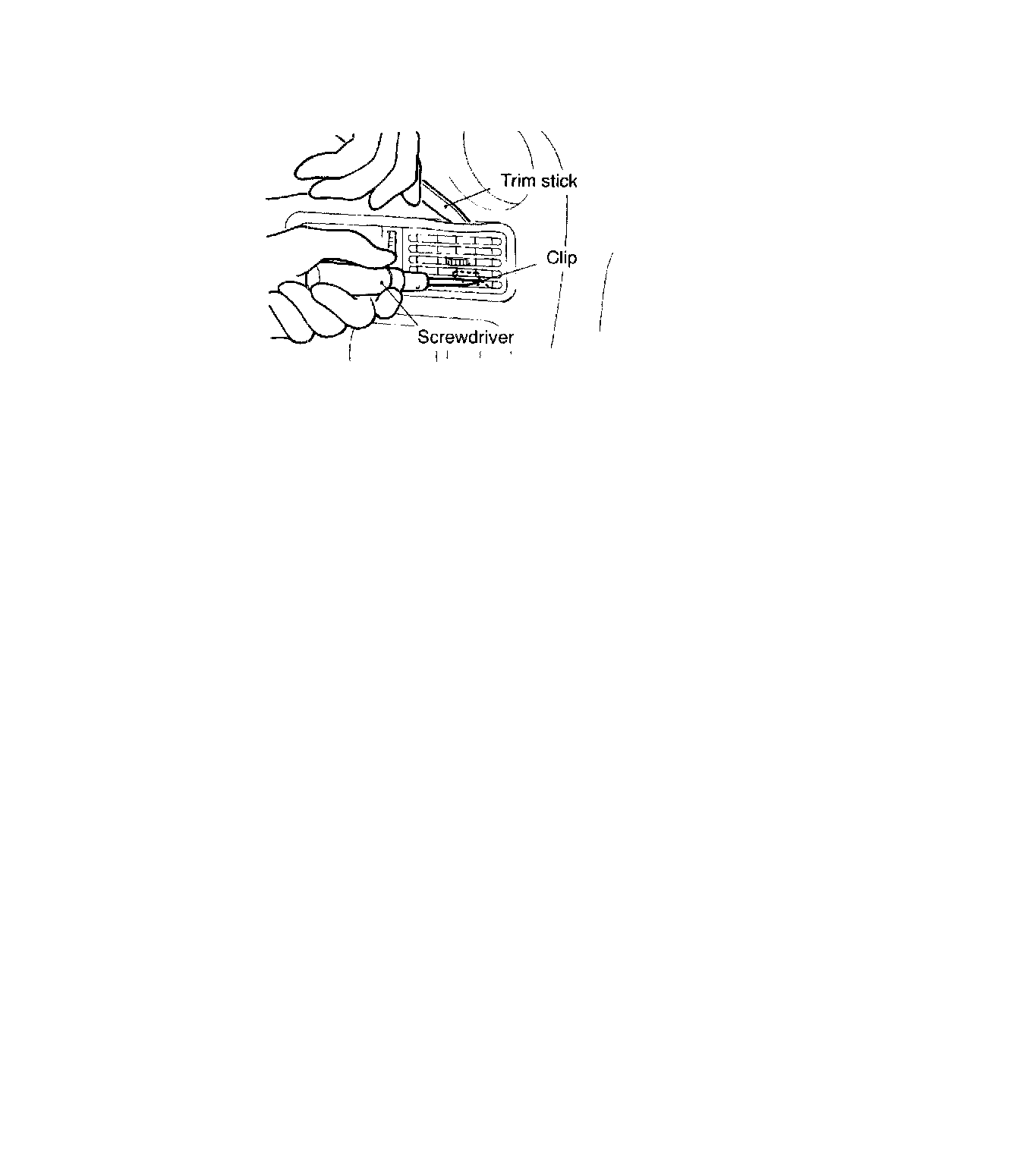

Disengaging the clips (2 positions) Of the center air-outlet assembly with a fiat tip screwdriver remove the center air outlet assembly with the trim stick.
REMOVAL AND INSTALLATION
CENTER AIR OUTLET ASSEMBLY REMOVAL
Disengaging the clips (2 positions) Of the center air-outlet assembly with a fiat tip screwdriver remove the center air outlet assembly with the trim stick.
