Mode Selection Damper Potentiometer Check

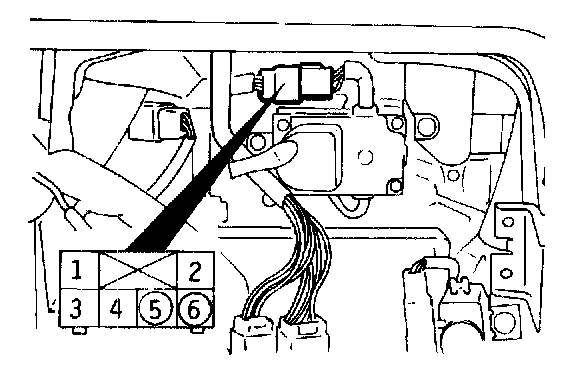

Connect a circuit tester across terminals (5) and (6) of the motor assembly connector and check that resistance gradually changes as the damper is moved from DEF. to FACE position.

Standard value
DEF. position: Approx. 0.2 K ohms
FACE position: Approx. 4.8 K ohms
