Blend Door Position Sensor

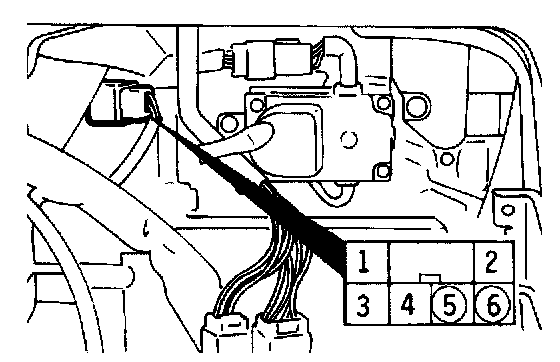

Connect a circuit tester across terminals (5) and (6) of the motor assembly connector and check that resistance gradually changes as the damper is moved from MAX. HOT to MAX. COOL position.

Standard value
MAX. HOT: Approx. 0.2 K ohms
MAX. COOL: Approx. 4.8 K ohms
