Water Pump: Service and Repair

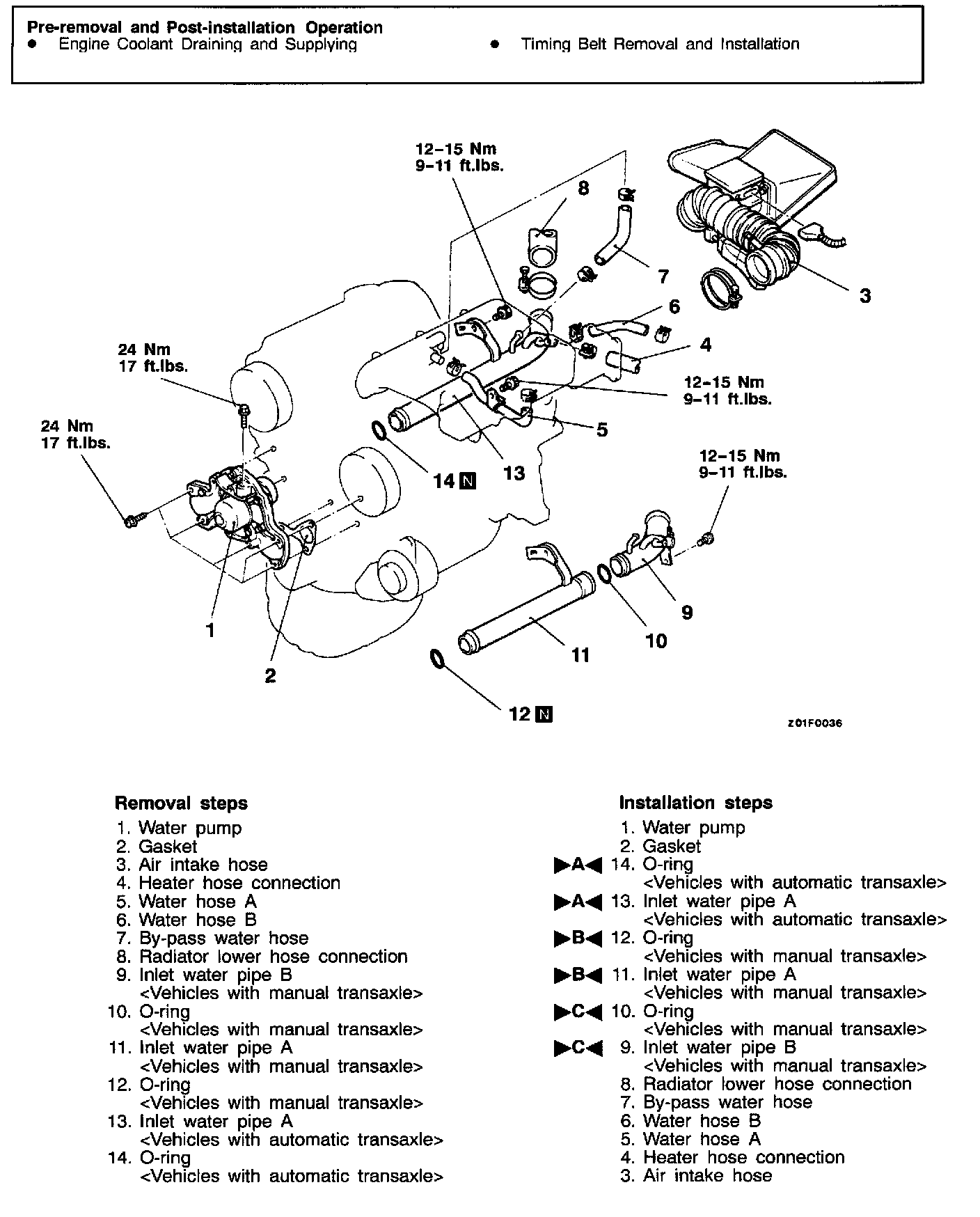

REMOVAL AND INSTALLATION

Installation Service Points
]A[ O-Ring / Inlet Water Pipe Installation





Insert the O-ring to the water inlet pipe, and coat the outer portion of the O-ring with water. By coating with water, the insertion to the water pump will become easier.

CAUTION: Care must be taken not to permit engine oil or other grease to adhere to the O-ring. Do not fold over or scratch the O-ring during installation.

]B[ O-Ring / Inlet Water Pipe A Installation





Insert the O-ring to the water inlet pipe A, and coat the outer portion of the O-ring with water. By coating with water, the insertion to the water pump will become easier.

CAUTION: Care must be taken not to permit engine oil or other grease to adhere to the O-ring. Do not fold over or scratch the O-ring during installation.

]C[ O-Ring / Inlet Water Pipe B Installation





Insert the O-ring to the water inlet pipe B. and coat the outer portion of the O-ring with water. By coating with water, the insertion to the water pump will become easier.

CAUTION: Care must be taken not to permit engine oil or other grease to adhere to the O-ring. Do not fold over or scratch the O-ring during installation.

INSPECTION

Water Pump Check
If any of the following irregularities are observed, replace the water pump as an assembly.
1. Damage or crack on the water pump body





2. Water leakage. With improper sealing, a water leakage mark may be observed around hole (A).
