Removal and Replacement

REMOVAL AND INSTALLATION

Removal Service Points
[A] Power Steering Oil Pump / Air Conditioning Compressor Disconnection
Disconnect power steering oil pump and air conditioning compressor with hoses from the bracket.

NOTE: The removed power steering oil pump and air conditioning compressor should be fastened (by using rope, etc.) in a position that will not interfere with the removal/installation of the engine assembly.

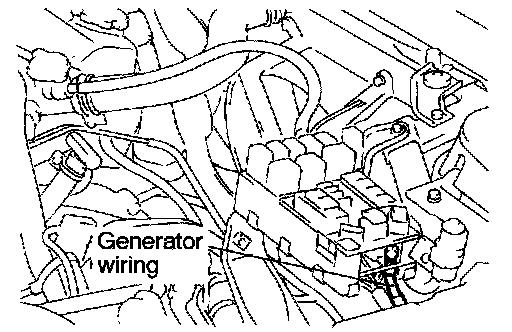

[B] Relay Box And Engine Wiring Harness Disconnection





Open the cover of the relay box and disconnect the generator wiring.

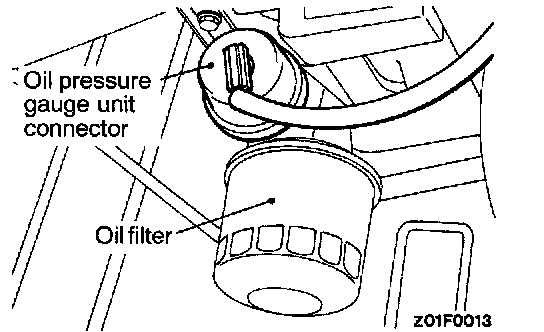

[C] Recoil Pressure Gauge Unit Disconnection





Disconnect the oil pressure gauge unit connector shown in the illustration.

[D] Engine Mount Bracket Removal





1. Remove the distributor cap and attach special tool to the engine hooks.
2. Using a block and tackle or hoist, take up the special tool slack.
3. Remove the bolts and nuts that fasten the engine mount bracket to the body.

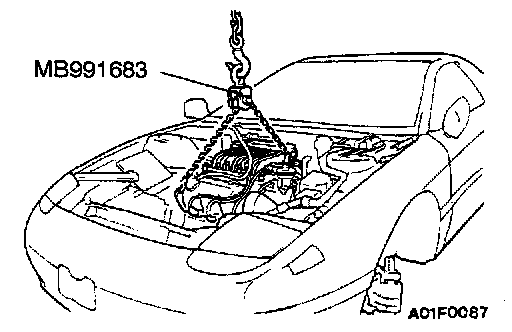

[E] Engine Assembly Removal
After checking that the cables, hoses, harness connectors, etc. are all removed, slowly raise the chain block to lift the engine assembly upward out of the engine compartment.

Installation Service Points
]A[ Engine Assembly Installation
When mounting the engine, check to be sure that the cables, hoses, harness connectors, etc. are all in the correct position.

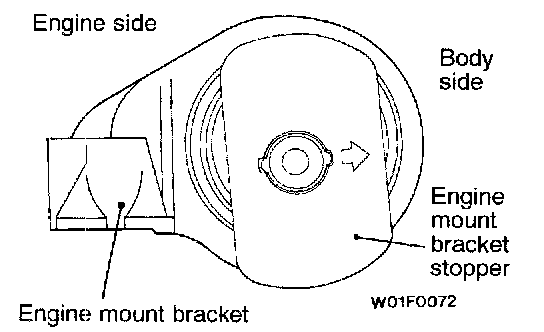

]B[ Engine Mount Bracket Installation





Attach the engine mounting bracket so that the arrow mark on the mounting stopper is in the direction as shown in the illustration.
