Removal and Installation

REMOVAL AND INSTALLATION

Removal Service Point
[A] Fuel Rail (With Injectors) Removal

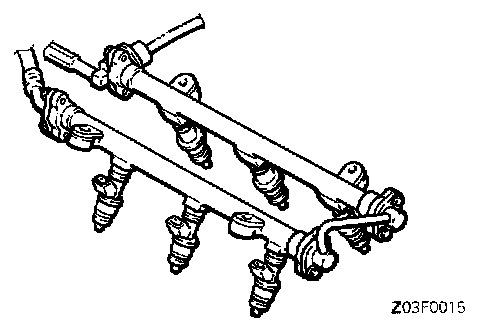

Disconnect the fuel rail with the injector attached to the fuel rail.

CAUTION:
1. Be careful not to drop the injector when removing the fuel rail.
2. Be aware that fuel will flow out when the injector is removed.

Installation Service Points
]A[ Intake Manifold Gasket Installation

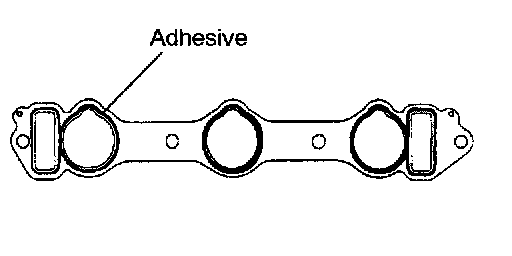

Attach the gasket to the cylinder head, facing the adhesive coated side toward the intake manifold.

]B[ Intake Manifold Installation

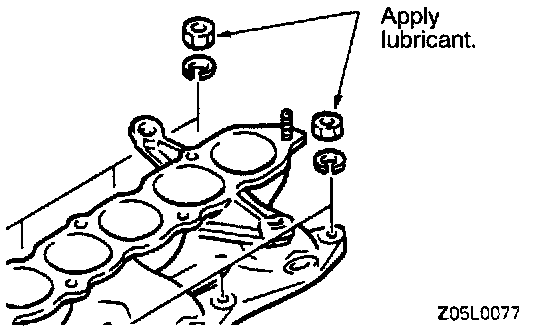

Apply lubricant sparingly to the intake manifold mounting nuts.

INSPECTION





Check the following points. Replace the part if a problem is found.
1. Check for damage or cracking of any part.
2. Clogging of the negative pressure (vacuum) outlet port, or clogging of the water or gas passages.

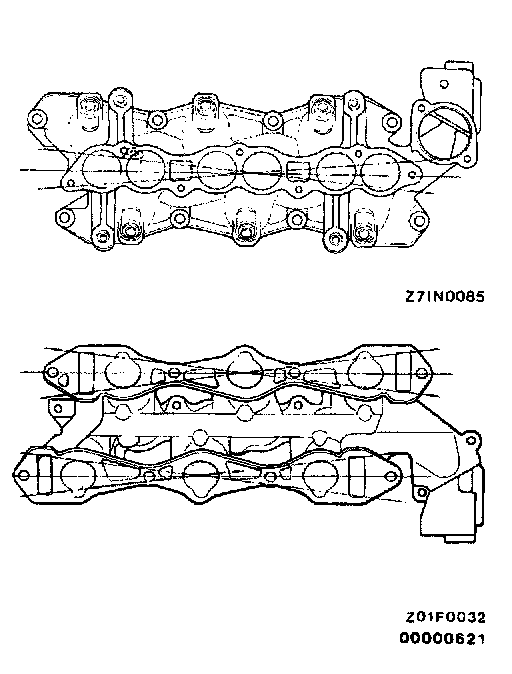

3. Check deflection of installation surface with straight edge and thickness gauge.
Standard value: 0.15 mm (0.0059 inch) or less
Limit: 0.2 mm (0.008 inch)
