Oil Pan: Service and Repair

REMOVAL AND INSTALLATION

Removal Service Point
[A] Oil Pan Removal

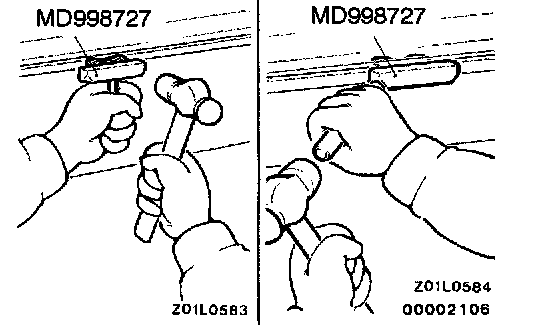

After removing the bolts, use the special tool and a brass bar to remove the oil pan from the cylinder block.

CAUTION: Remove the oil pan gradually since the flange of the oil pan is easy to deform.
