Radiator: Service and Repair

REMOVAL AND INSTALLATION

Removal Service Point
[A] Automatic Transaxle Oil Cooler Hoses Disconnection
Use a plug or otherwise cover the hose and nipple part of the radiator so that dust, dirt, foreign materials, etc. do not enter after the hose has been disconnected from the radiator.

Installation Service Point

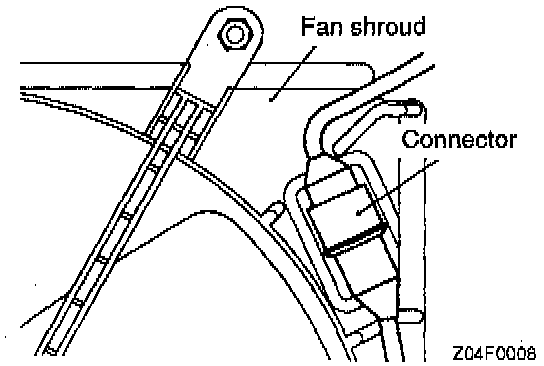

]A[ Radiator Fan Motor Connector Connection





Connect the radiator fan motor connector to the body harness. Then, insert into the shroud hole and fix securely.

INSPECTION
- Check for foreign material between radiator fins.
- Check the radiator fins for bent, or damage.
- Check the radiator for corrosion, damage, rust or scale.
- Check the radiator hoses for cracks, damage or deterioration.
- Check the reserve tank for damage.
- Check the automatic transaxle oil cooler hoses for cracking, damage or deterioration.
