Temperature Sensor (Gauge): Service and Repair

REMOVAL AND INSTALLATION

Installation Service Points
>A< Air Intake Hose B / Air Intake Hose A Installation

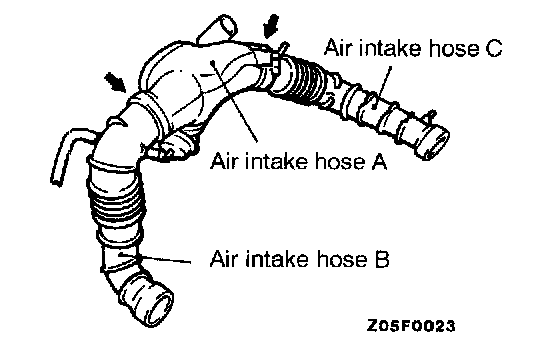

Assemble the air intake hose A with its notches (arrow-marked) lined up with the - marks on the air intake hoses B and C. Insert the hoses into the air intake hose A until they are bottomed. Insert the air intake hose B on the turbocharger side until they are bottomed.
