Starting System
>>
System Diagram
>>
Without Theft-Alarm System
Without Theft-Alarm System

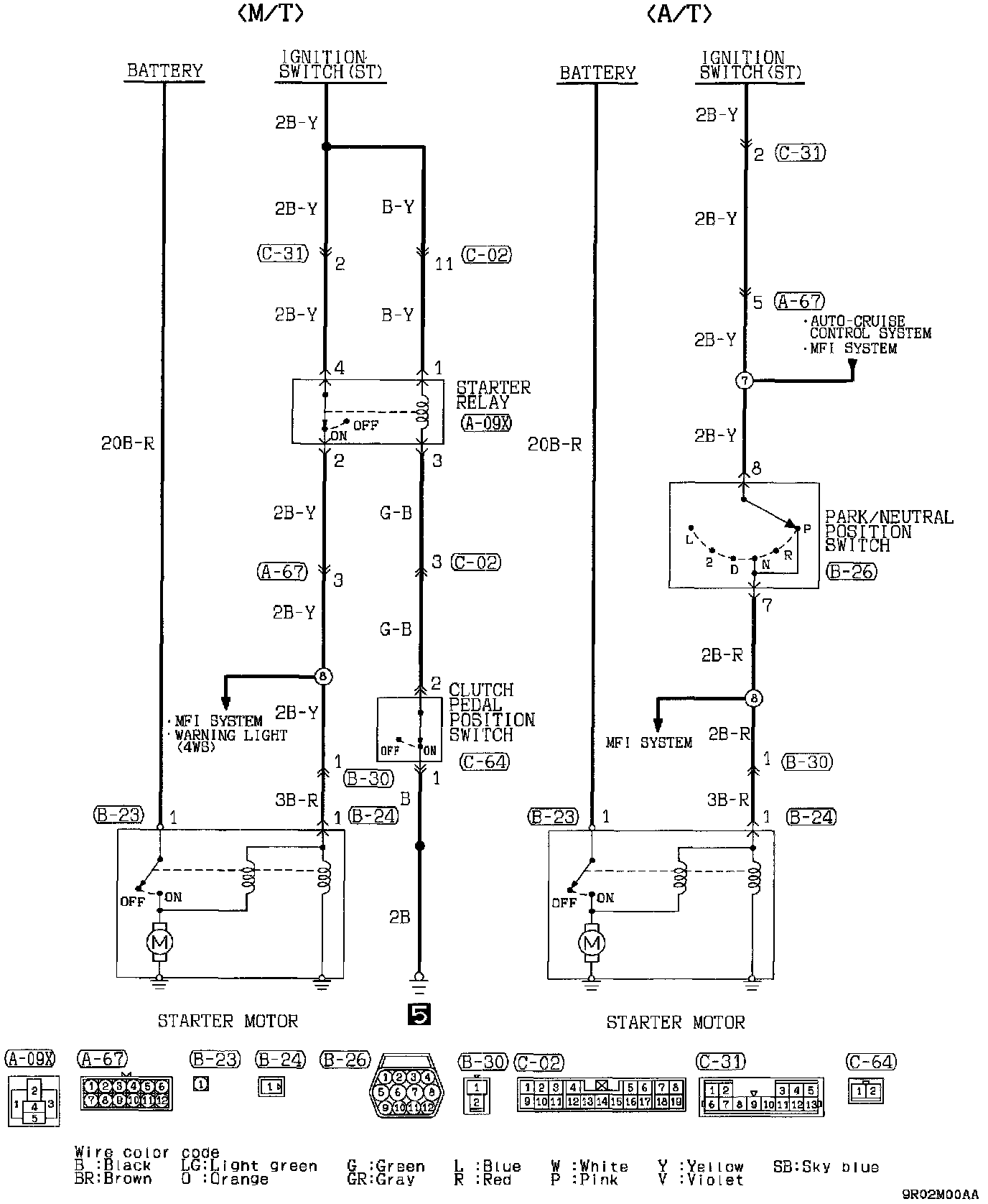

Starting System <Vehicles Without Theft-Alarm System>:
