Power Steering Fluid Level Sensor/Switch
Power Steering Fluid Level Sensor/Switch

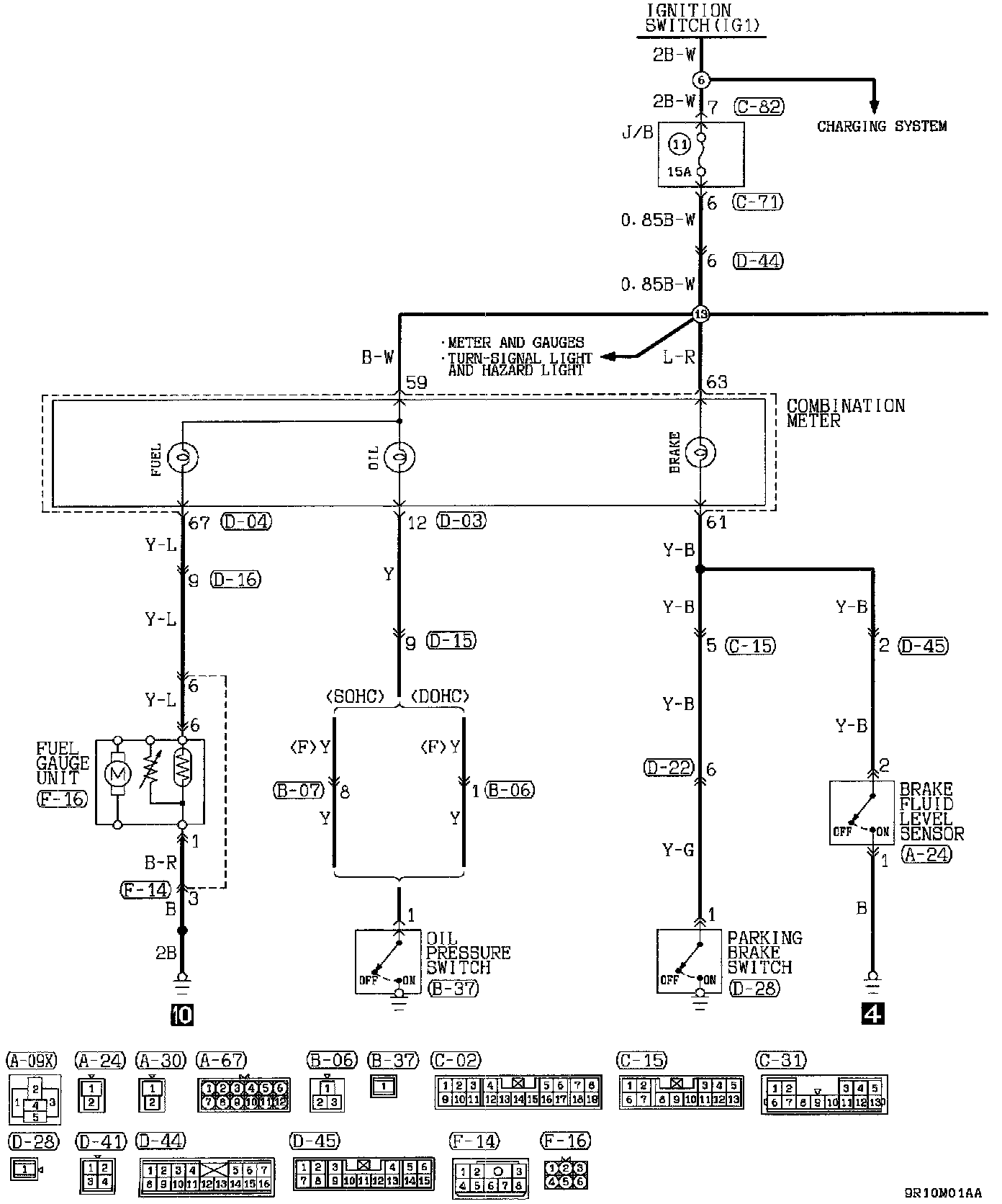

Fuel, Oil Pressure, Brake And 4WS Warning Light (Part 1 Of 2):

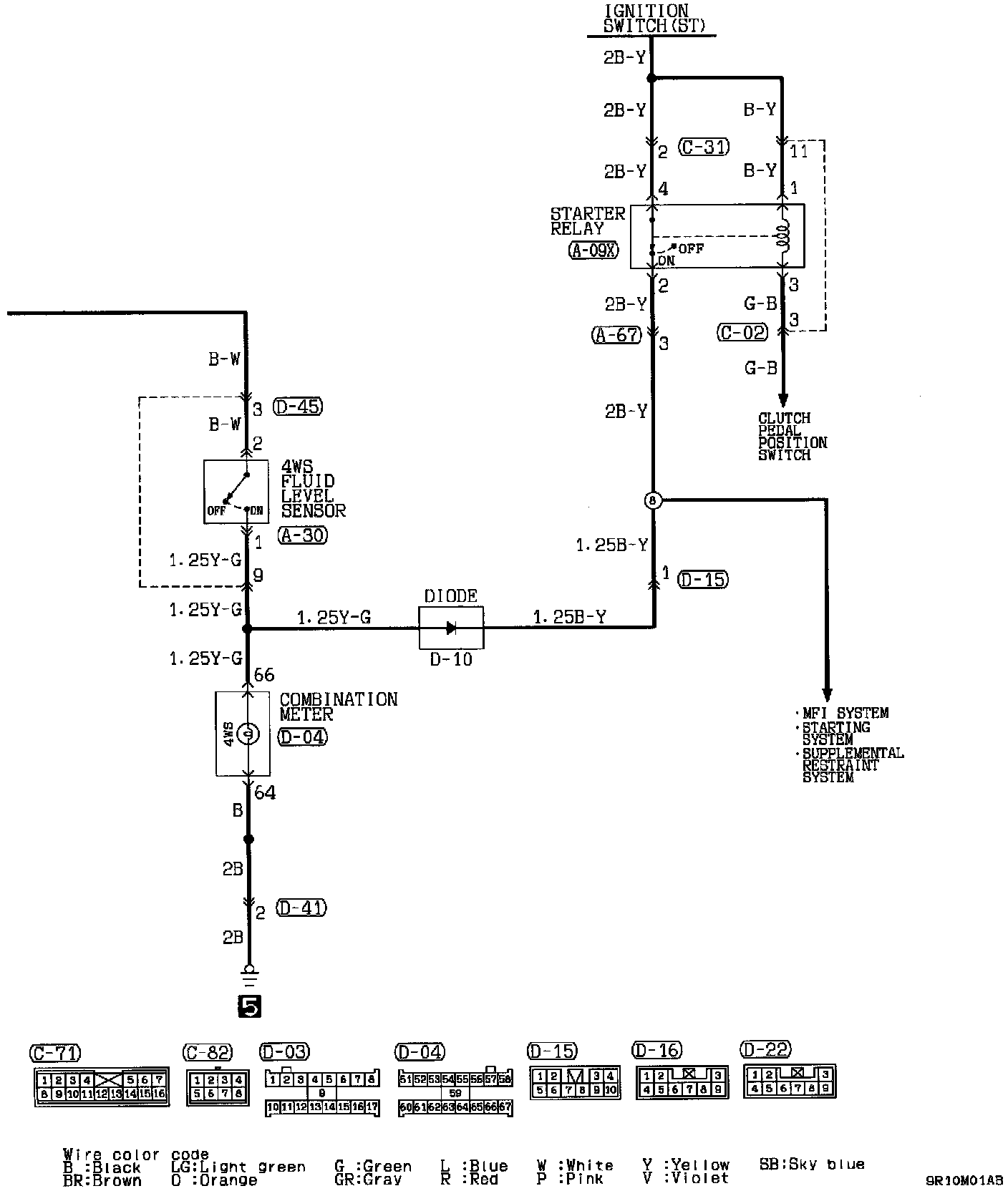

Fuel, Oil Pressure, Brake And 4WS Warning Light (Part 2 Of 2):
