Power Locks

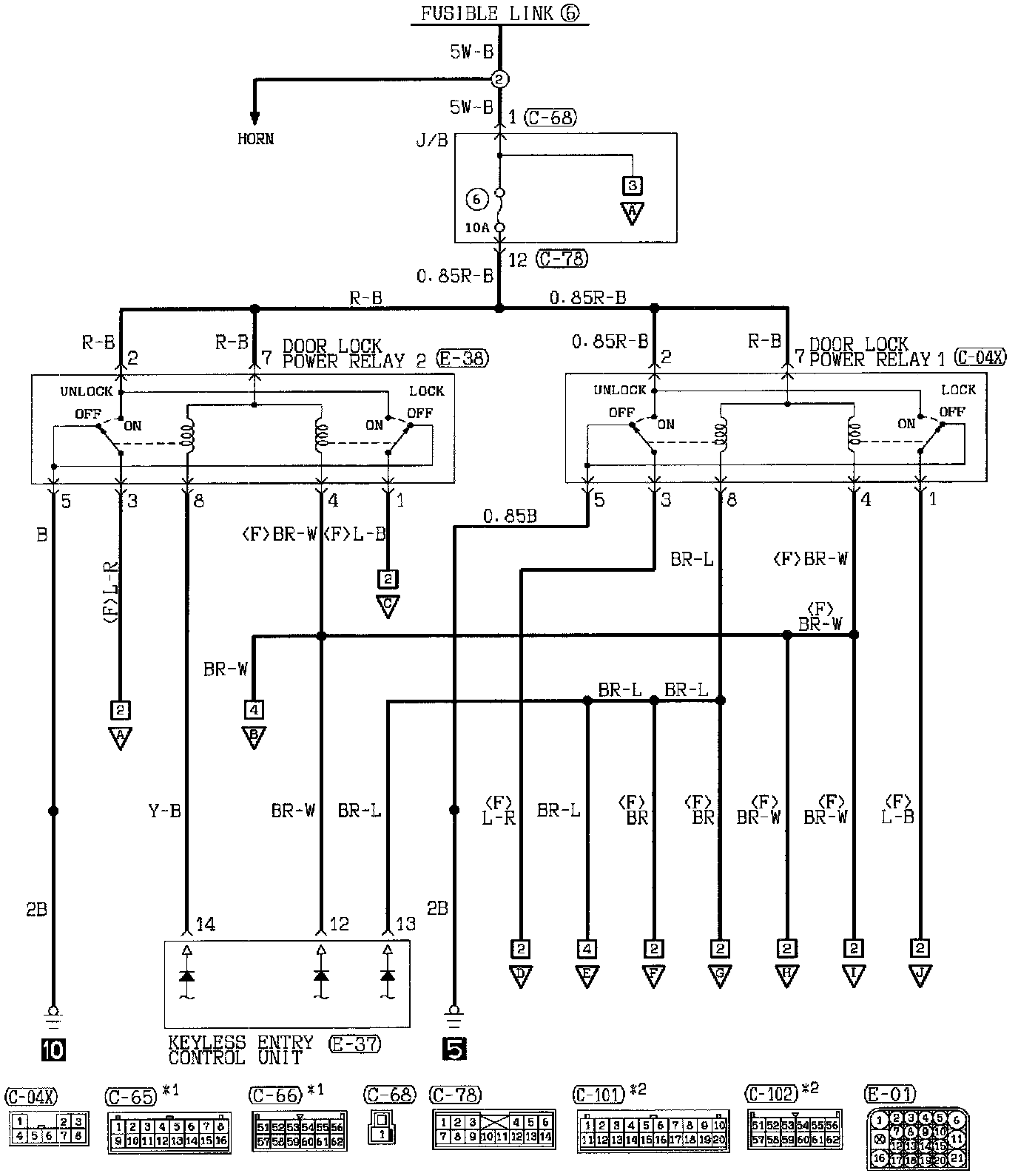

Central Door Locking System (Part 1 Of 4):

Door Lock Power Relay (1 and 2)
J/B
Keyless Entry Control Unit

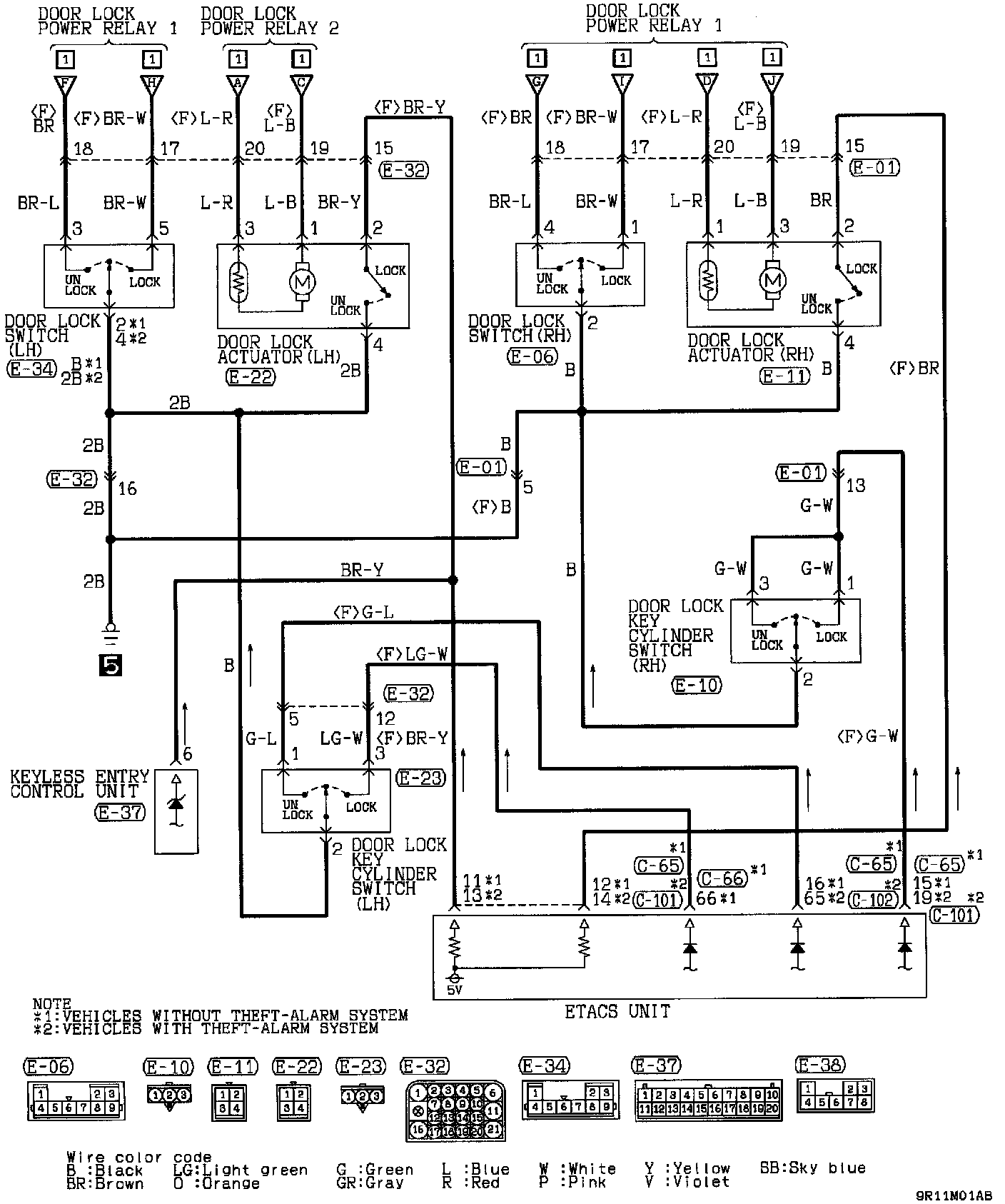

Central Door Locking System (Part 2 Of 4):

Door Lock Actuator (LH & RH)
Door Lock Switch (LH & RH)
Door Lock Key Cylinder Switch (LH & RH)
ETACS Unit
Keyless Entry Control Unit

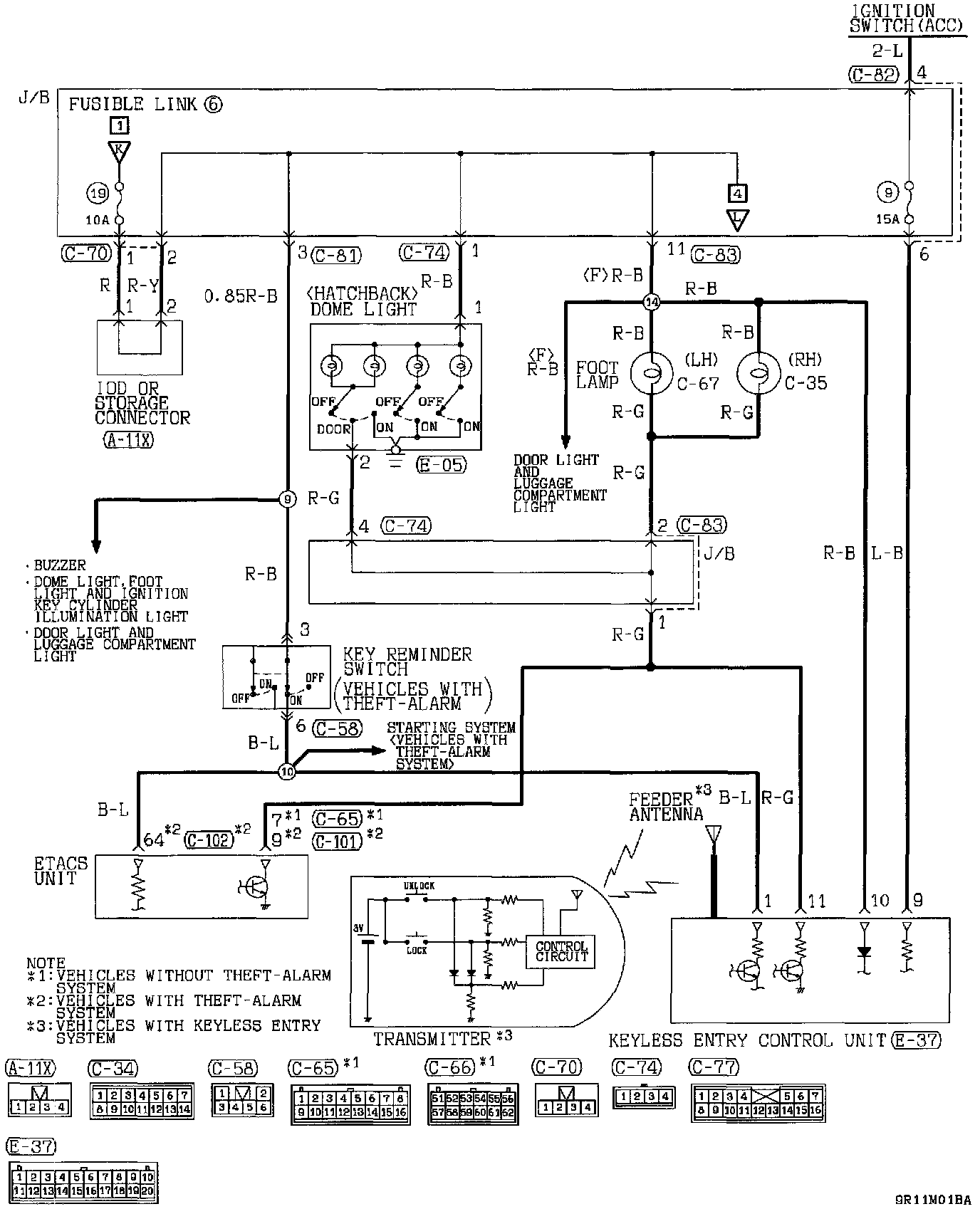

Central Door Locking System (Part 3 Of 4):

Dome Light (Hatchback)
ETACS Unit
IOD or Storage Connector
J/B
Keyless Entry Control Unit
Key Reminder Switch (Vehicle With Theft-Alarm)

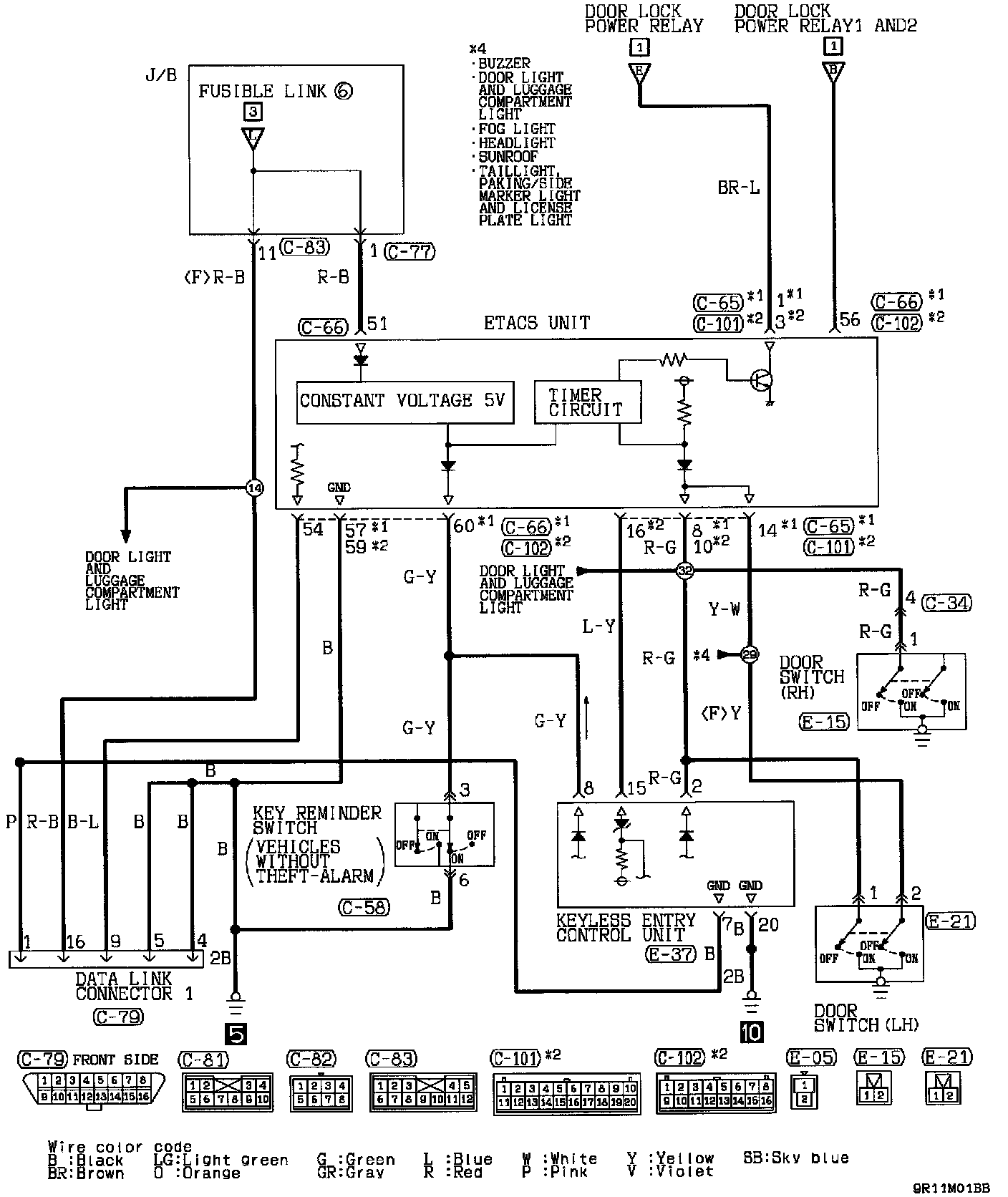

Central Door Locking System (Part 4 Of 4):

Data Link Connector 1
Door Switch (LH & RH)
ETACS Unit
- Timer Circuit
IOD or Storage Connector
J/B
Keyless Entry Control Unit
Key Reminder Switch (Vehicle Without Theft-Alarm)
