Antilock Brakes / Traction Control Systems

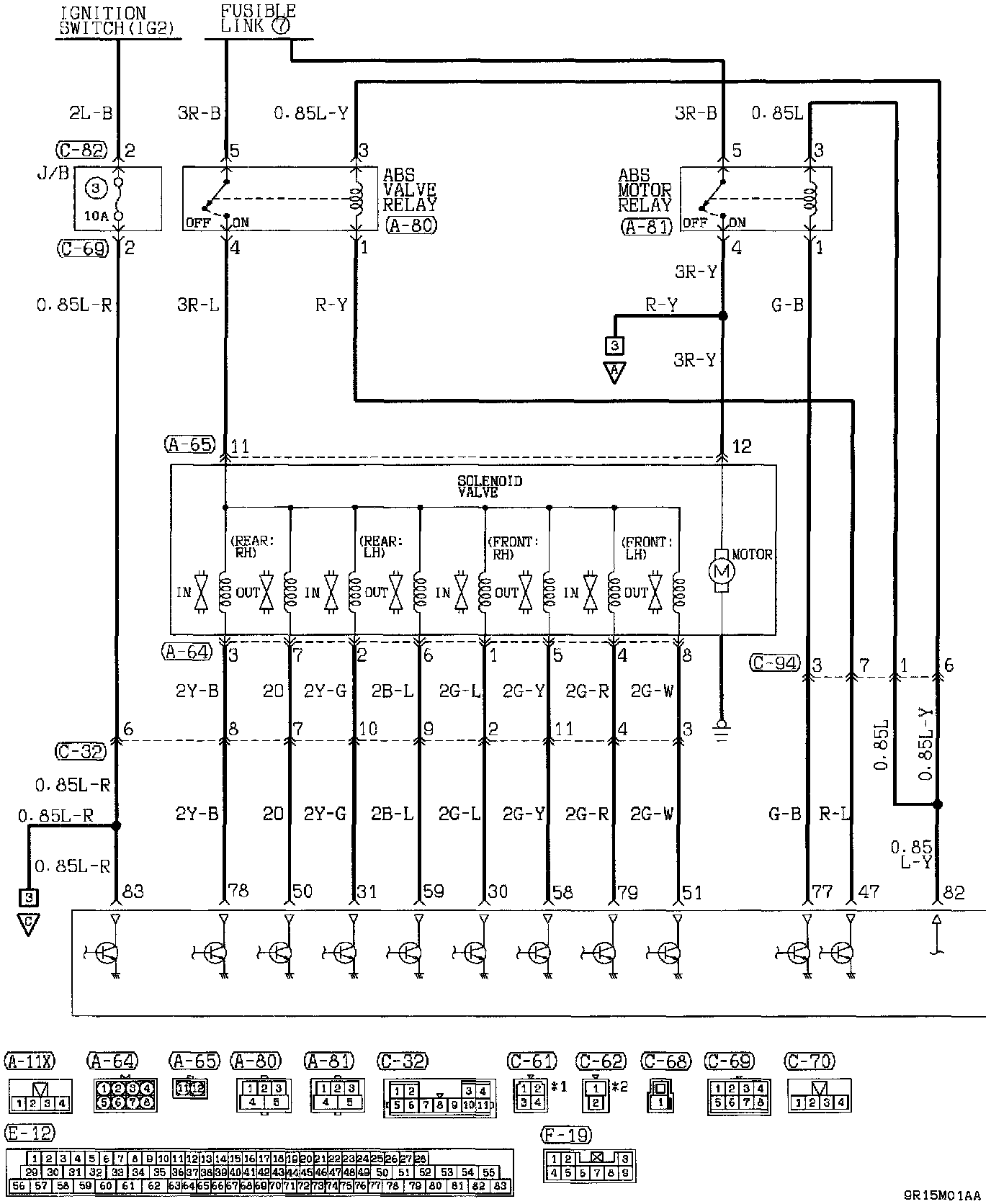

Anti-Lock Braking System (ABS) (Part 1 Of 3):

ABS Control Unit
ABS Motor Relay
ABS Valve Relay
J/B
Solenoid Valve

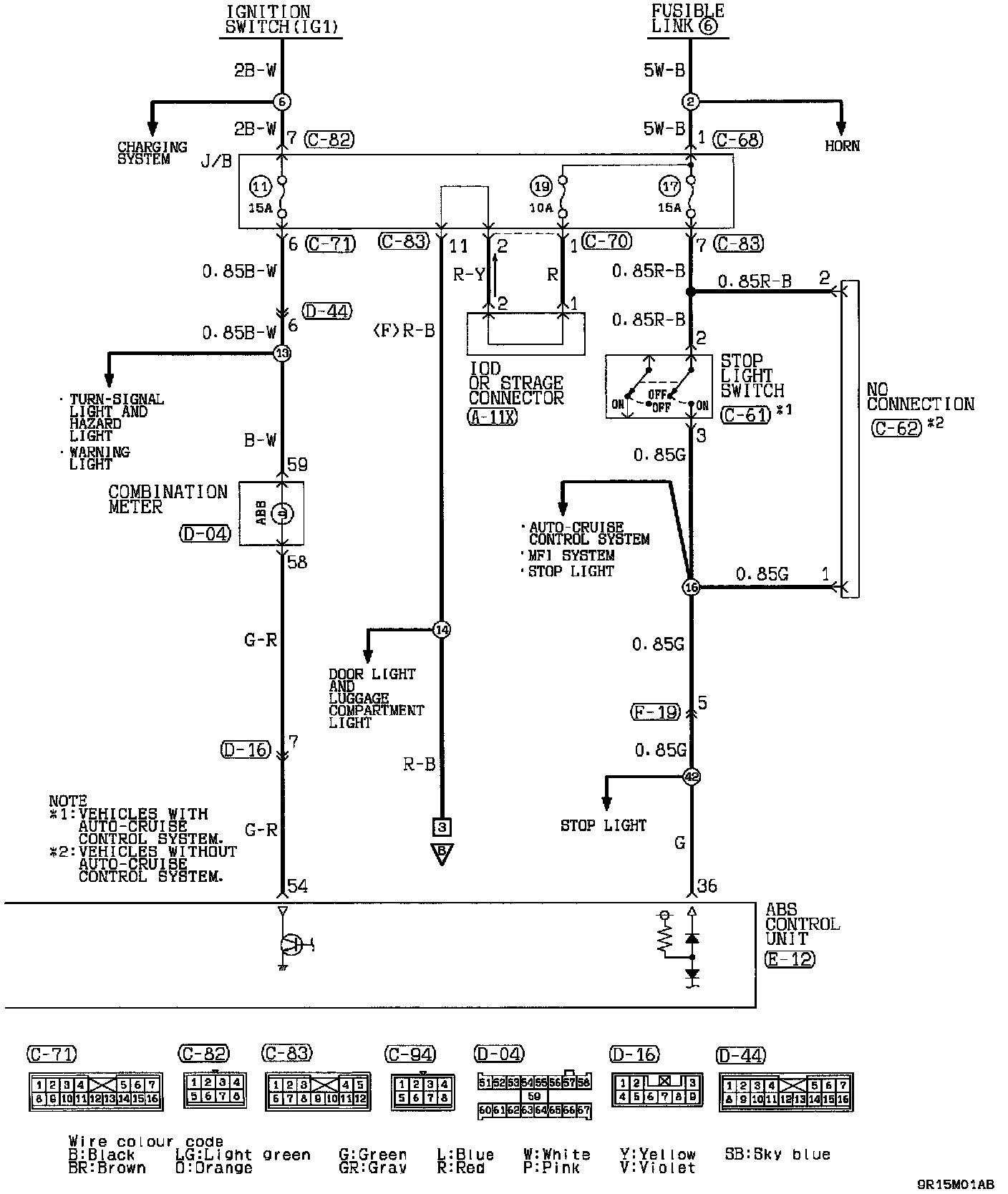

Anti-Lock Braking System (ABS) (Part 2 Of 3):

ABS Control Unit
Combination Meter
IOD or Storage Connector
J/B
Stop Light Switch

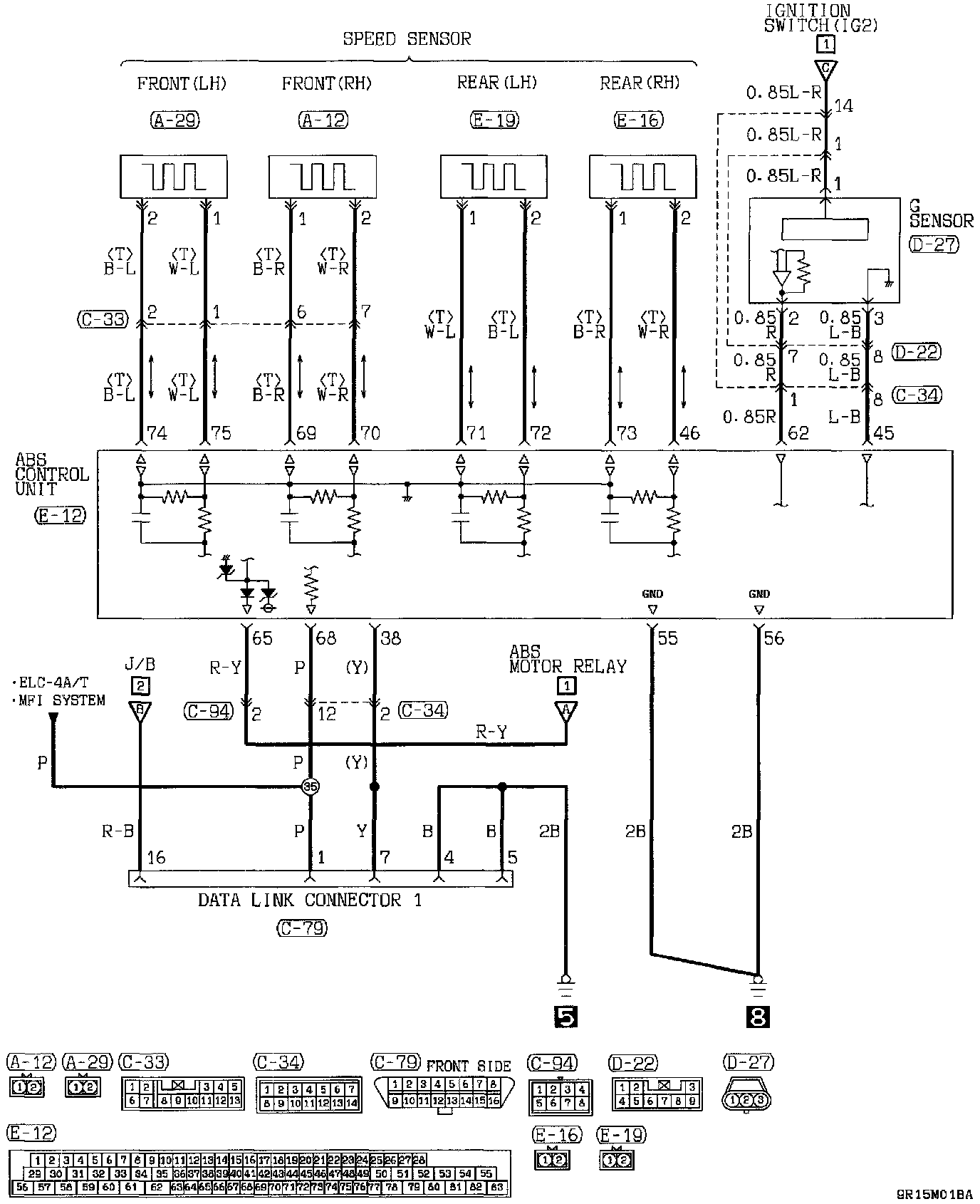

Anti-Lock Braking System (ABS) (Part 3 Of 3):

ABS Control Unit
Data Link Connector 1
G Sensor
Speed Sensor
- Front (LH and RH)
- Rear (LH and RH)
