Solenoids and Solenoid Valves

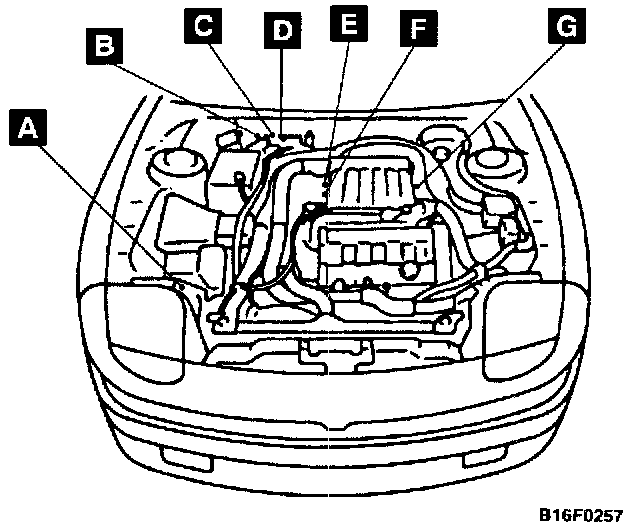

Solenoid, Solenoid Valve Locations Overall View:

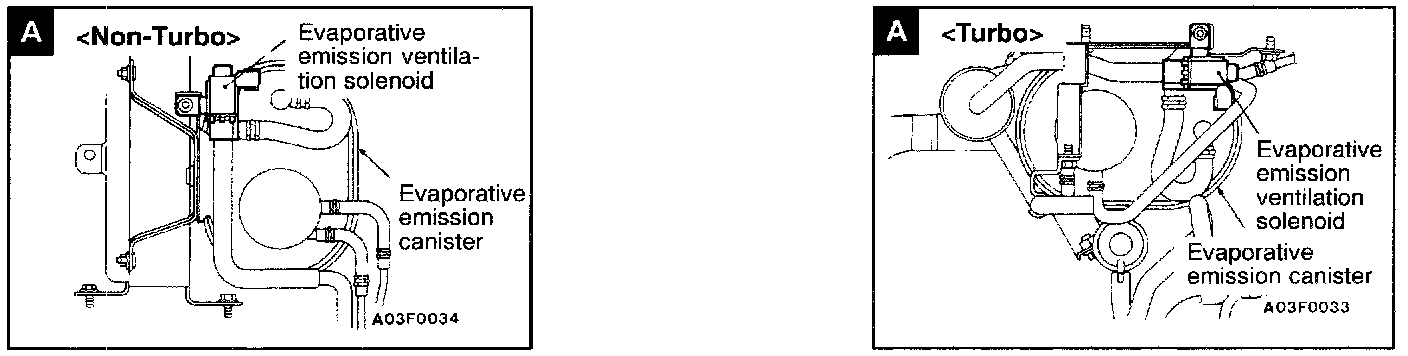

Solenoid, Solenoid Valve Locations Views A-A:

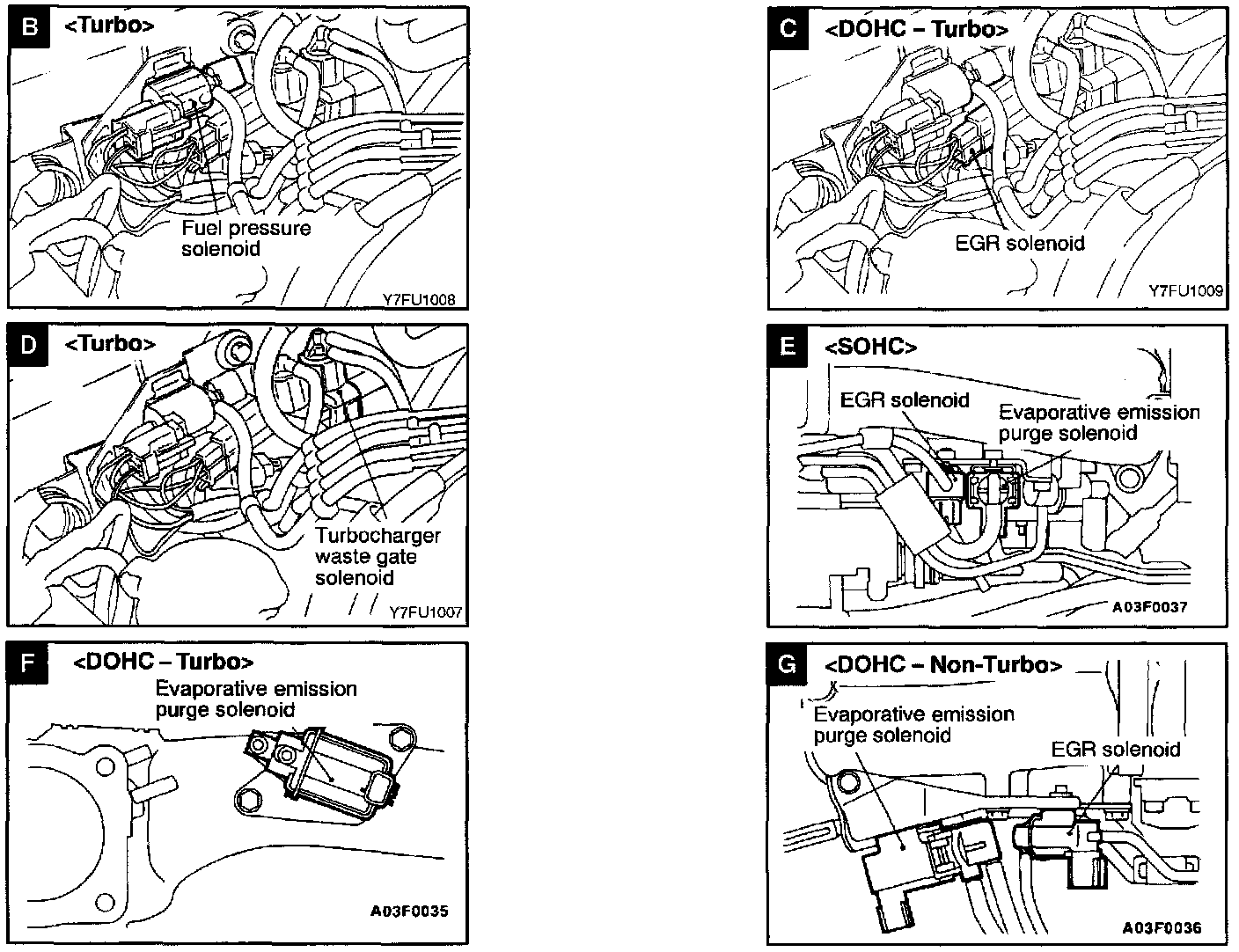

Solenoid, Solenoid Valve Locations Views B-G:

Name Symbol
EGR Solenoid E
Evaporative Emission Purge Solenoid E
