Misc. Relays

Relay Locations Overall View:

Relay Locations Views A-J:

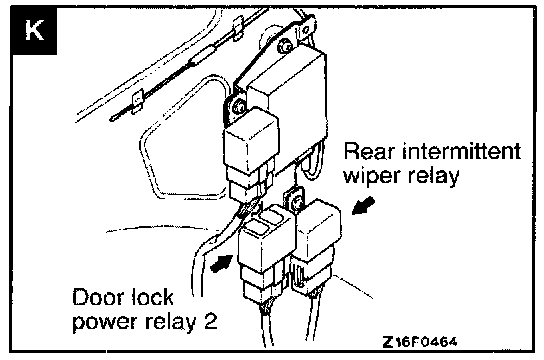

Relay Locations View K:

Name Symbol
Auto-Cruise Control I
Blower Motor Relay E
Condenser Fan Motor Relay (HI) D
Condenser Fan Motor Relay (LO) D
Defogger Relay F
Door Lock Power Relay 1 F
Door Lock Power Relay 2 K
Fog Light Relay A
Fuel Pump Relay C
Headlight Relay A
Horn Relay A
Magnetic Clutch Relay D
MFI Relay J
Motor Relay (ABS Hydraulic Unit) B
Power Window Relay F
Radiator Fan Motor Relay (LO & HI) A
Rear Intermittent Wiper Relay K
Starter Relay A
Taillight Relay A
Theft-Alarm Horn Relay
(Vehicles With Anti-Theft System) E
Theft-Alarm Starter Relay
(Vehicle With Anti-Theft System) H
Turn-Signal and Hazard Flasher Unit G
Valve Relay (ABS Hydraulic Unit) B
