Initial Inspection and Diagnostic Overview

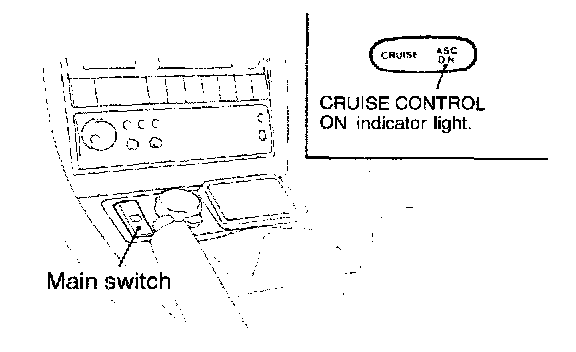

CRUISE CONTROL MAIN SWITCH CHECK
1. Turn the ignition key to ON.
2. Check to be sure that the CRUISE CONTROL ON indicator light within the combination meter illuminates when the main switch is switched ON.

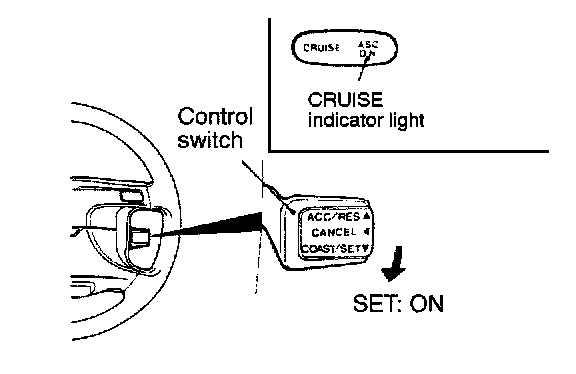

CRUISE CONTROL SETTING CHECK
1. Switch ON the main switch.
2. Drive at the desired speed within the range of approximately 40 - 200 kph (25 - 124 mph).
3. Operate the control switch downward. (SET switch: ON)
4. Check to be sure that the speed is the desired constant speed when the switch is released, and also check to be sure that the CRUISE indicator light (within the combination meter) illuminates.

NOTE: If the vehicle speed decreases to approximately 15 kph (9 mph) below the set speed, because of climbing a hill for example, the cruise control will be cancelled.

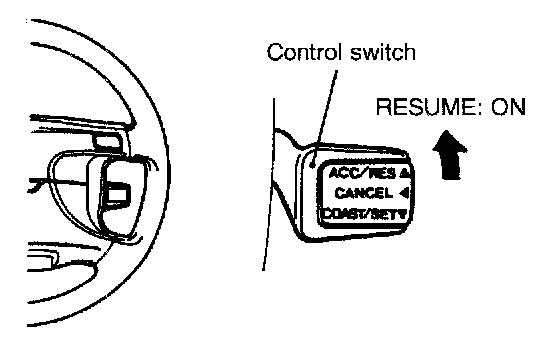

SPEED-INCREASE SETTING CHECK
1. Set to the desired speed.
2. Operate the control switch upward. (RESUME switch:ON)
3. Check to be sure that acceleration continues while the switch is held, and that after it is released the constant speed at the time when it was released becomes the driving speed.

NOTE: Even if, during acceleration, the vehicle speed reaches or exceeds the high limit, acceleration will continue, however, when the switch is released, the set speed ("memorized speed") will become the high limit of the vehicle speed.

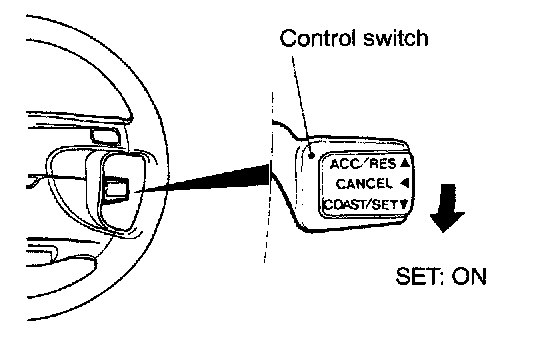

SPEED REDUCTION SETTING CHECK
1. Set to the desired speed.
2. Operate the control switch downward. (SET switch: ON)
3. Check to be sure that deceleration continues while the switch is held, and that after it is released the constant speed at the time when it was released becomes the driving speed.

NOTE: When the vehicle speed reaches the low limit [approximately 40 kph (25 mph)] during deceleration, the cruise control will be cancelled.





CRUISE CONTROL CANCELLATION AND SET SPEED RESUME CHECK
1. Set cruise control.
2. In the cruising condition of the cruise control mode, check that when any of the following operations are performed, the normal drive mode is restored and the vehicle coasts smoothly.

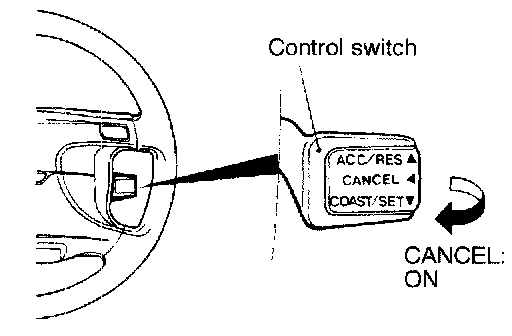

1. Move the control switch toward you. (CANCEL switch:ON)
2. Depress the brake pedal.
3. Depress the clutch pedal.
4. Place the gear selector lever in the N range.

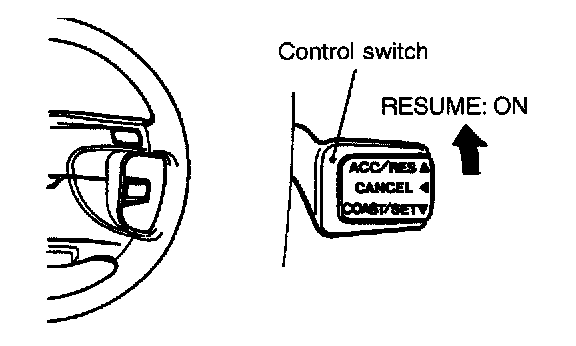

3. With the vehicle at a speed of more than about 40 kph (25 mph), check that when the control switch is moved upward (RESUME switch: ON), the vehicle resumes cruising at the speed held before cancellation of the cruise control mode.
4. In the cruise control mode, check that when the main switch is set to OFF, the normal drive mode is restored and the vehicle coasts smoothly.
