Wire Color Codes

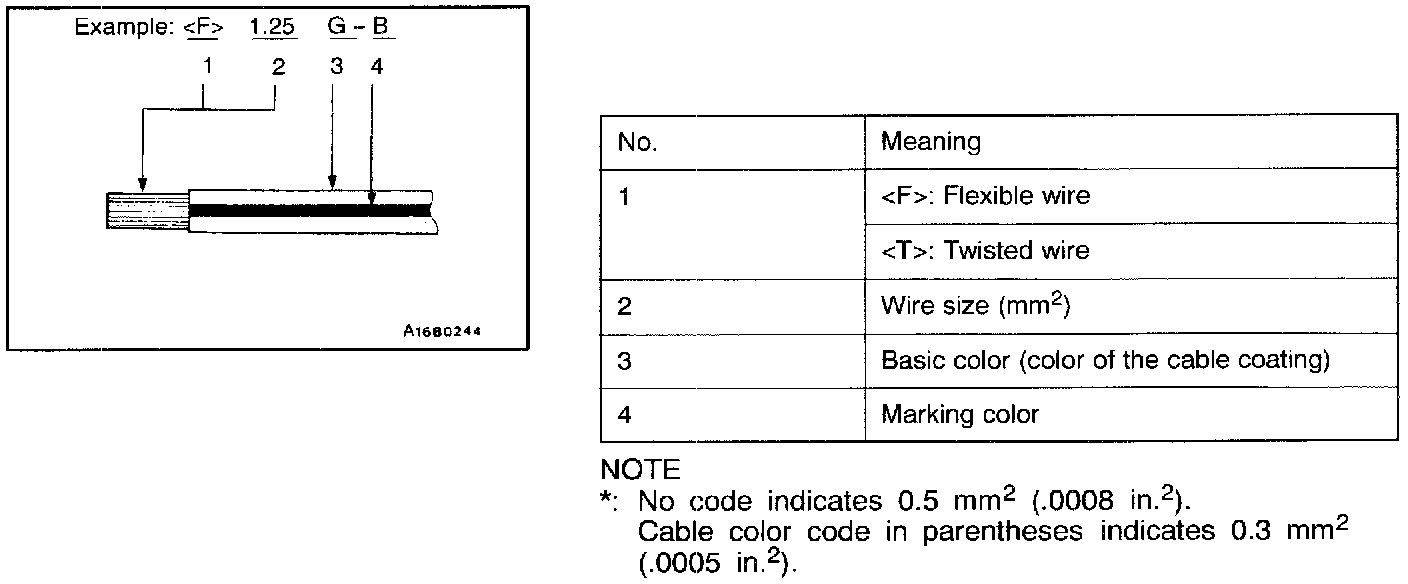

If a cable has two colors, the first of the two color code characters indicates the basic color (color of the cable coating) and the second indicates the marking color.


Color Code
B Black
BR Brown
G Green
GR Gray
L Blue
LG Light Green
O Orange
P Pink
R Red
SB Sky Blue
V Violet
W White
Y Yellow
