Brakes and Traction Control: Description and Operation
GENERAL INFORMATION
The service brakes use a brake system featuring excellent braking force and a high level of reliability and durability.
- Ventilated brake discs are used on all four wheels.
- For stable braking force and to improve the braking feeling, a pin slide type 2-piston (M-R57W) is used on FWD models and an opposed tandem 4-piston (M-R76Z) front ventilated disc brake is used on AWD models.
- A tandem brake booster is used for a big braking force with a light pressure on the brake pedal.
- To get a stable braking, a rear drum-in-disc brake with built-in parking brake is used [

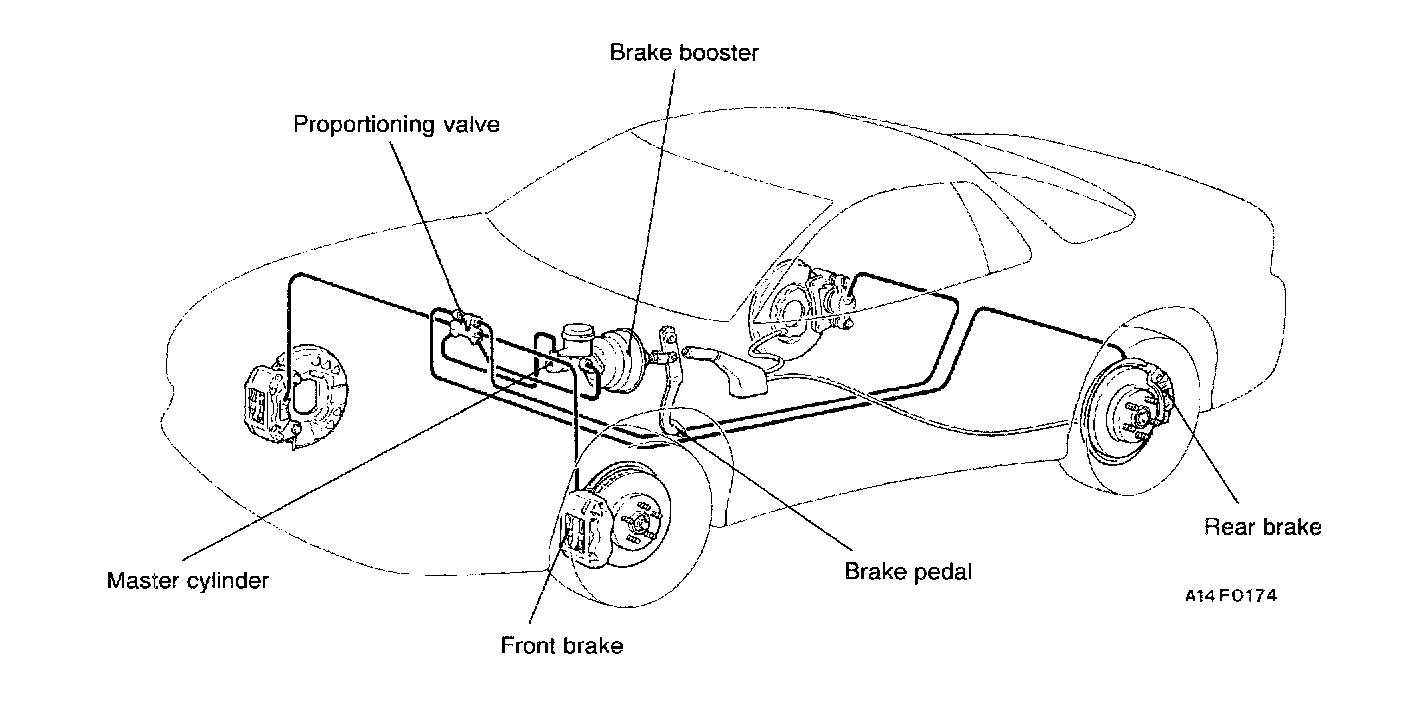

Construction Diagram
