Brake Pedal Assy: Service and Repair

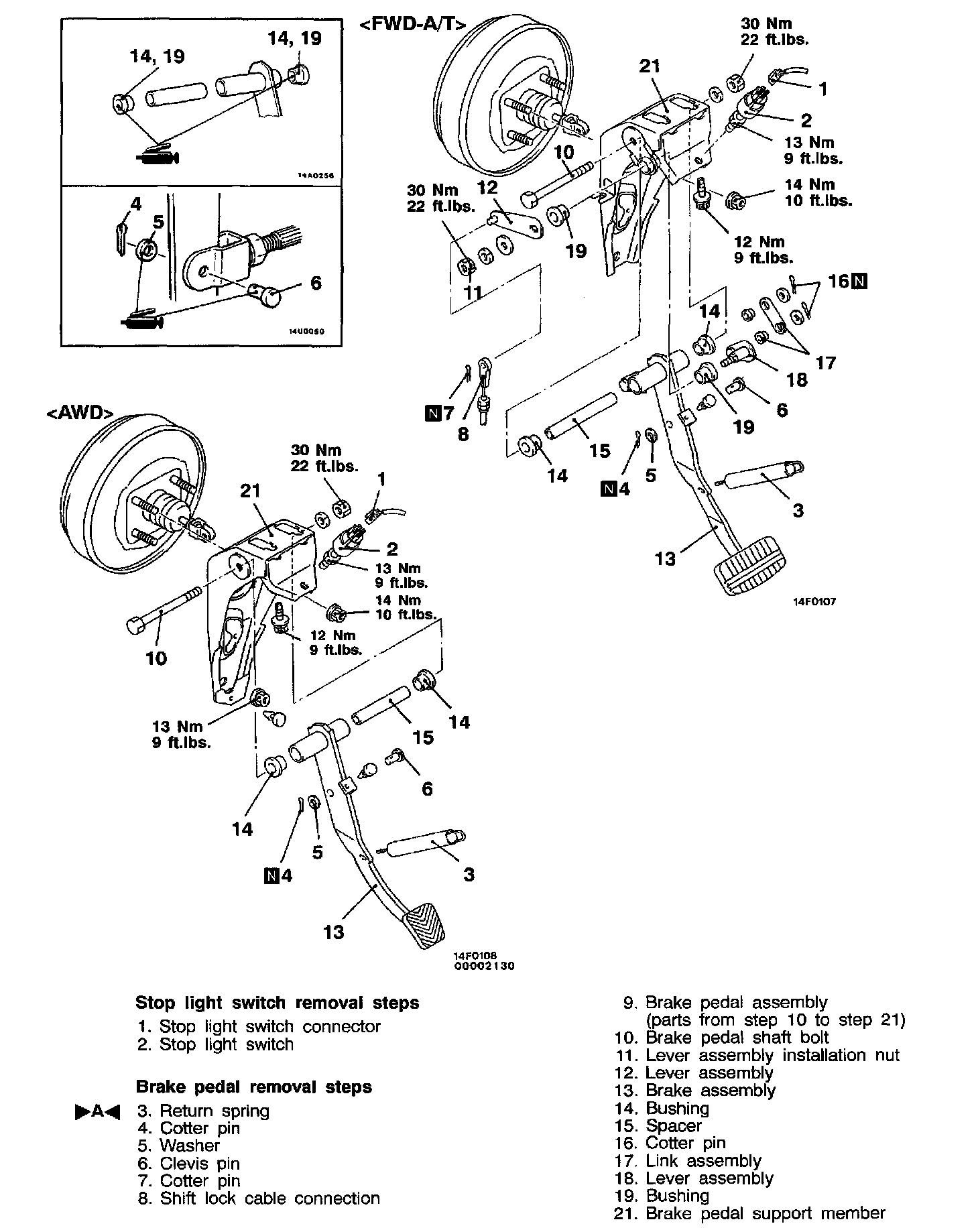

Part 1 Of 2:

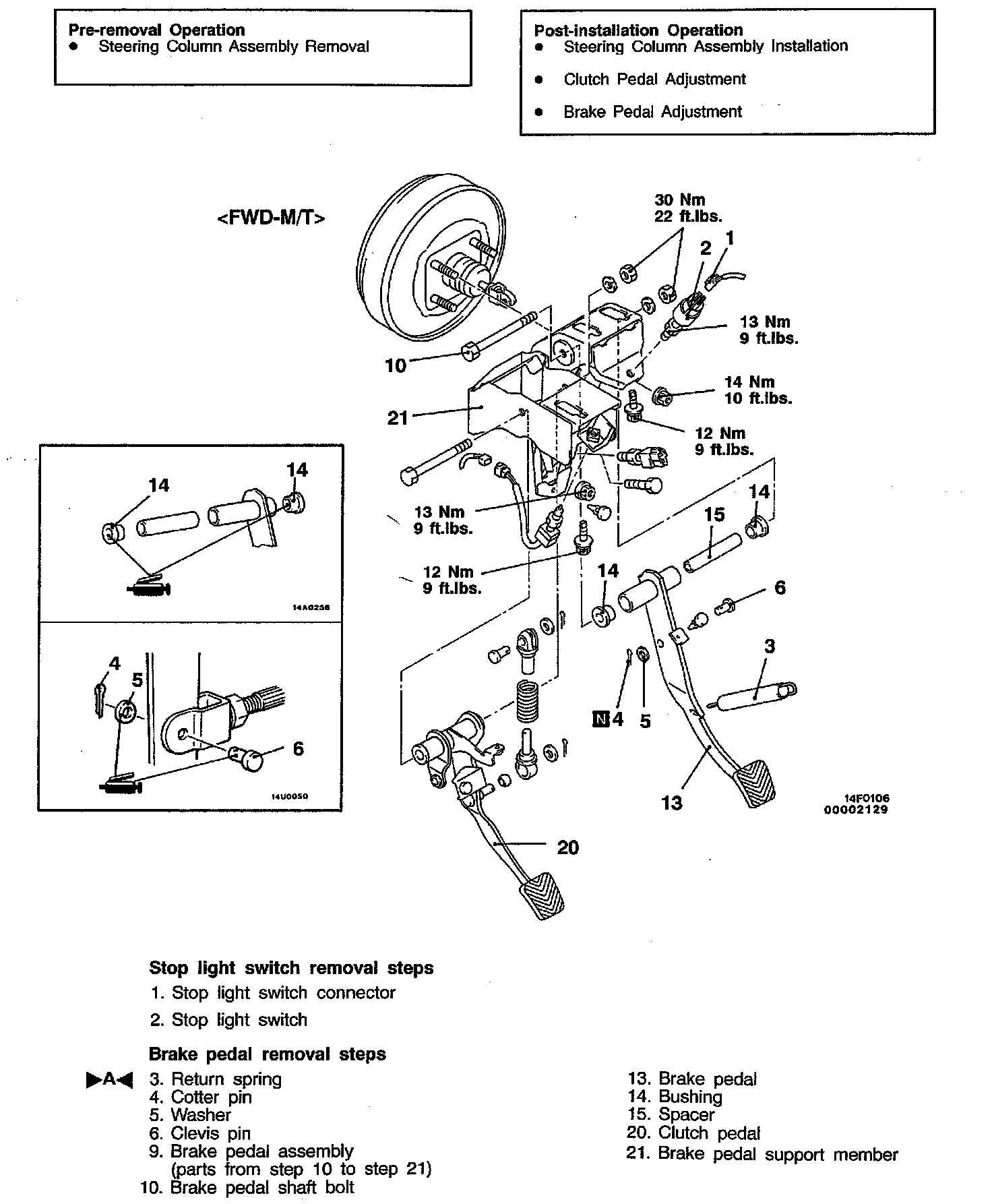

Part 2 Of 2:

>A

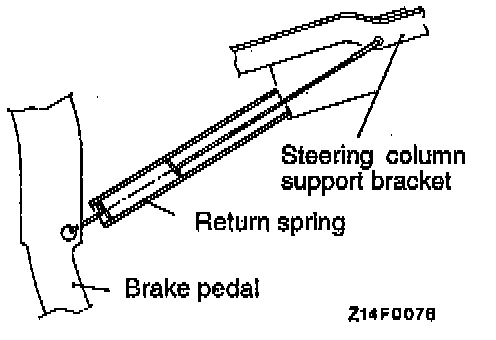

Install the return spring with the shorter hook on the brake pedal.

INSPECTION
- Check the bushing for wear.
- Check the brake pedal for bend or twisting.
- Check the brake pedal return spring for damage.

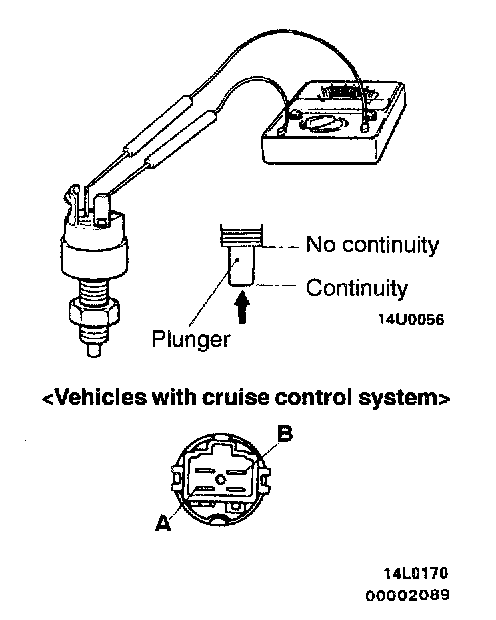

Stop Light Switch Check

1) Connect a circuit tester to the stop light switch.
2) The stop light switch is in good condition if there is no continuity when the plunger is pushed in to a depth of within 4 mm (0.16 inch) from the outer case edge surface, and if there is continuity when it is released.
For vehicles with the cruise control system, the check for continuity should be made at connectors "a" and "b" of the stop light switch.
