Front Door Weatherstrip: Service and Repair

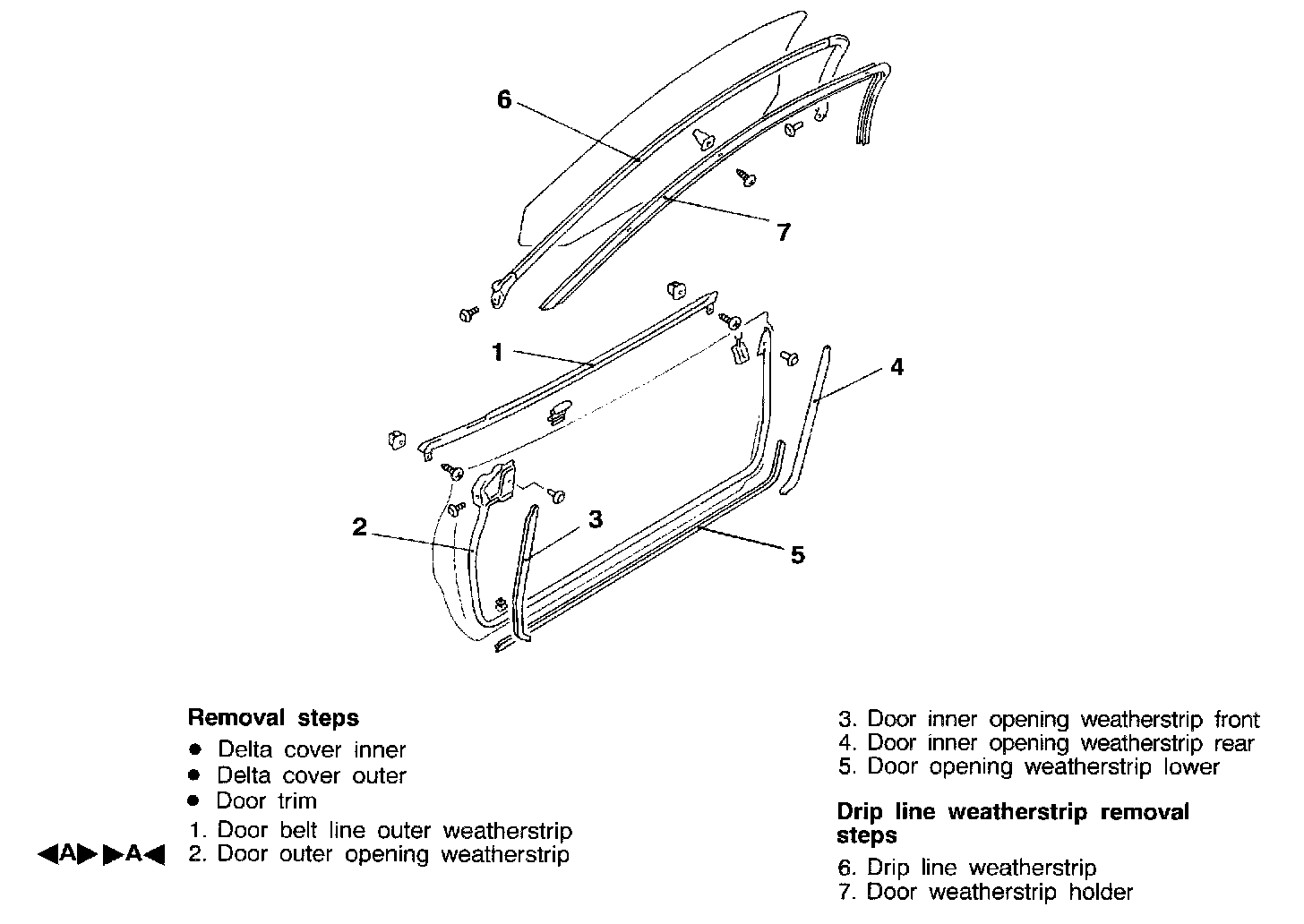

REMOVAL AND INSTALLATION

REMOVAL SERVICE POINT




[A] DOOR OUTER OPENING WEATHERSTRIP REMOVAL

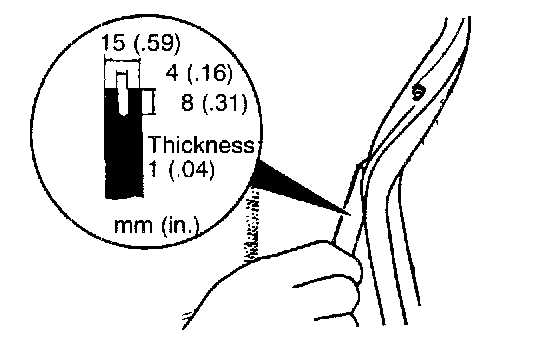

Place a tool as shown in the illustration to remove the door opening weatherstrip.

INSTALLATION SERVICE POINT




]A[ DOOR OUTER OPENING WEATHERSTRIP INSTALLATION

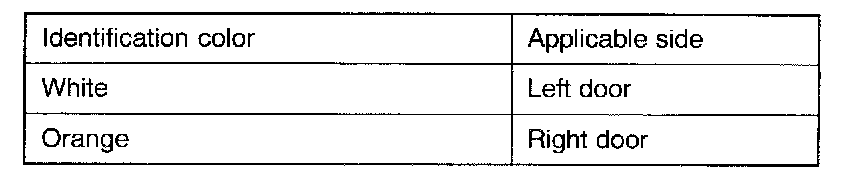

The clip color identifies the left and right weatherstrips, so be sure to use the colors so as to install correctly.
