Power Door Lock Relay: Testing and Inspection

DOOR LOCK POWER RELAY CHECK
1. Remove the knee protector assembly.

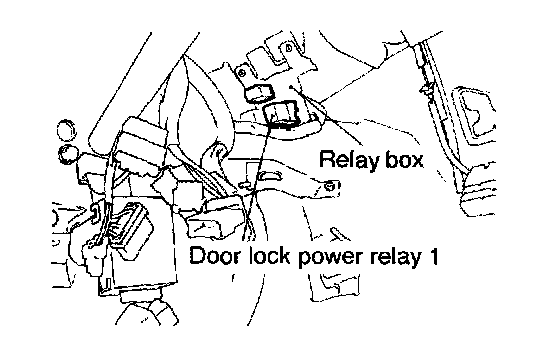

2. Remove the door lock power relay 1 from indoor relay box.

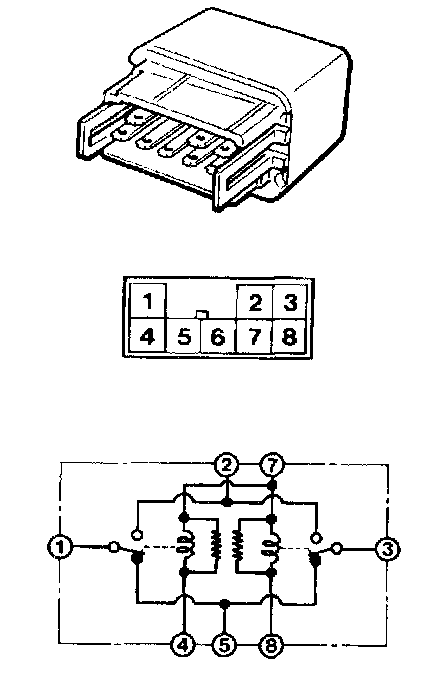

3. Remove the door lock power relay 2.

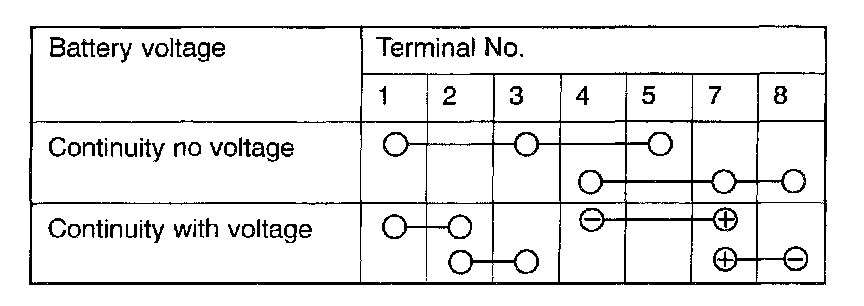

4. Check for continuity between terminals under the conditions described below.
