Liftgate

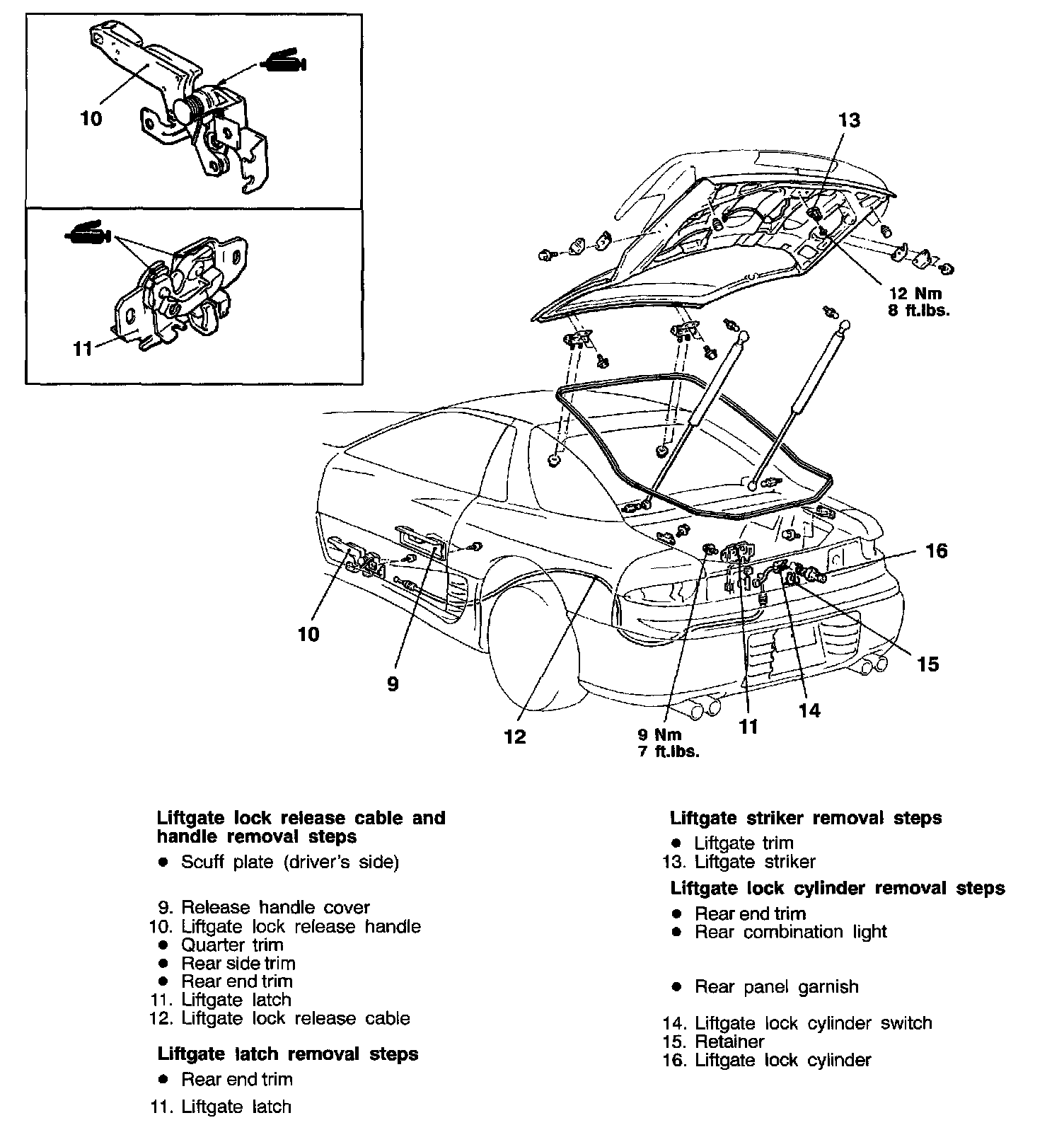

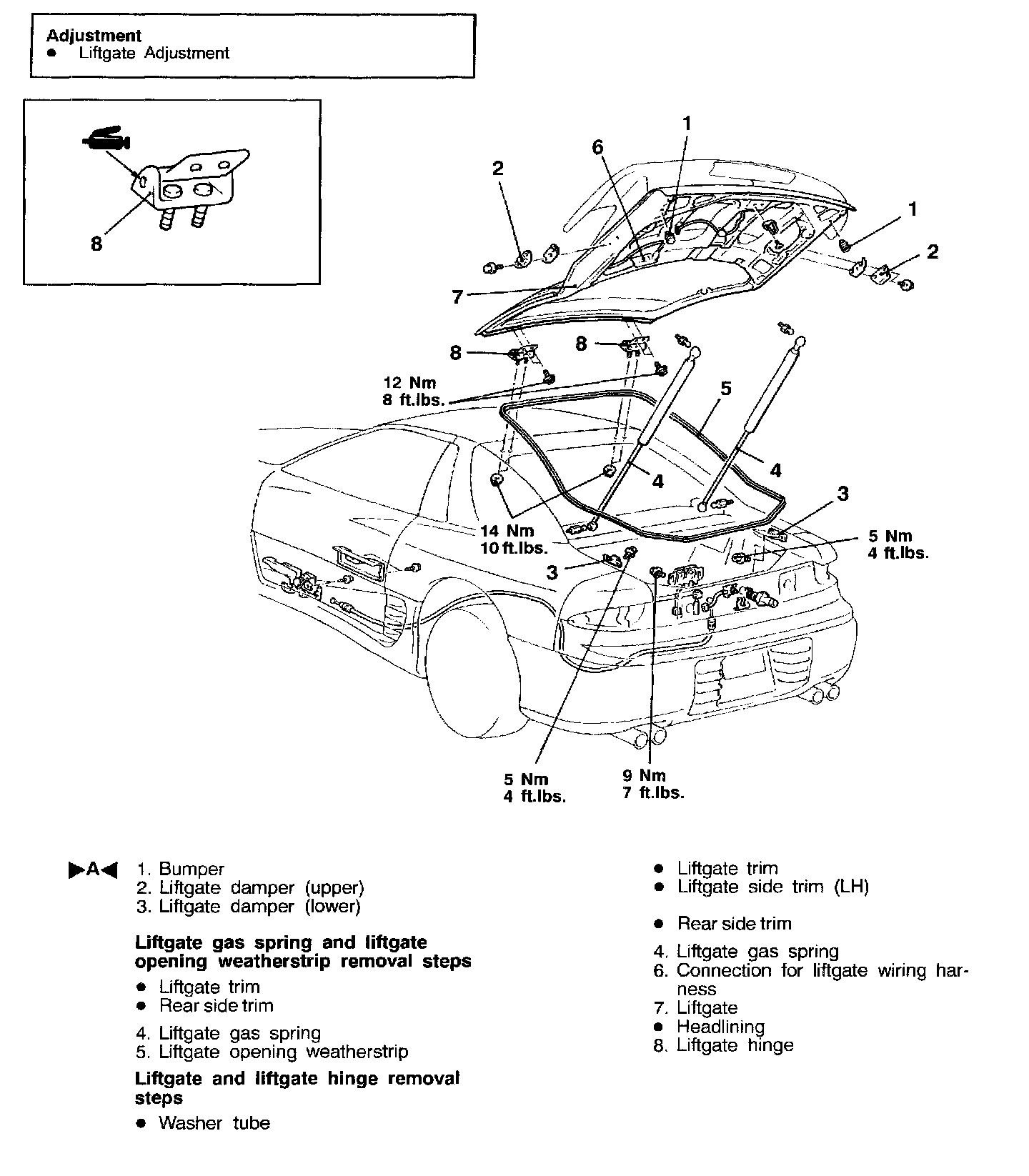

REMOVAL AND INSTALLATION

CAUTION:
1. Never try to disassemble the lingate gas spring or burn it.
2. Always bore a hole in the gas spring to release the interior gas before the spring is discarded.


INSTALLATION SERVICE POINT




]A[ BUMPER INSTALLATION

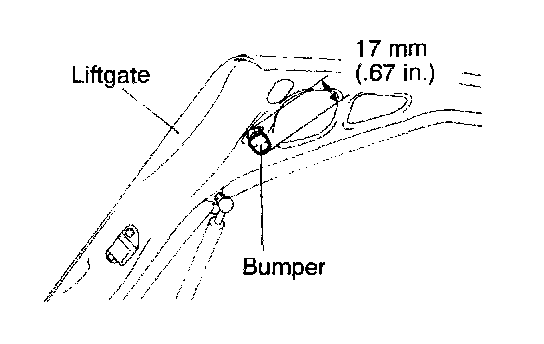

Install the bumper so that the amount of projection from the liftgate is as shown in the illustration.
