Liftgate Latch Switch Check

LIFTGATE LATCH SWITCH CHECK

1. Unlock the liftgate latch.

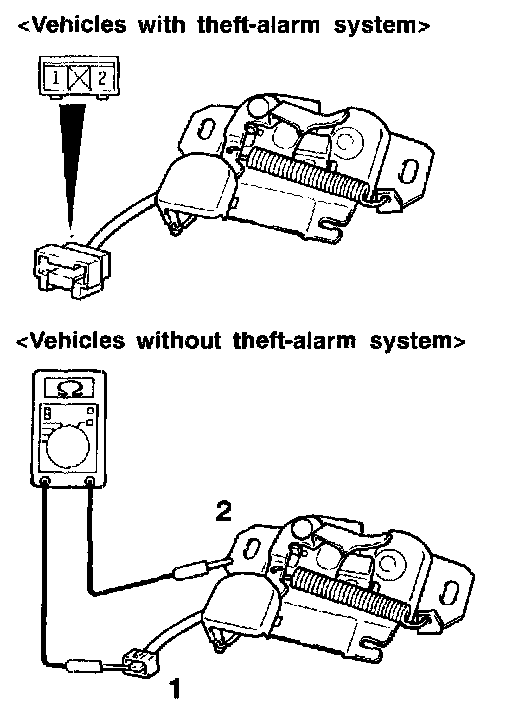

2. Check the continuity between the terminals.

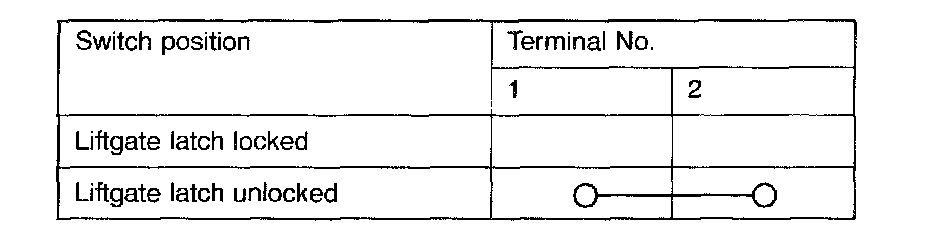

[Vehicles with theft-alarm system]

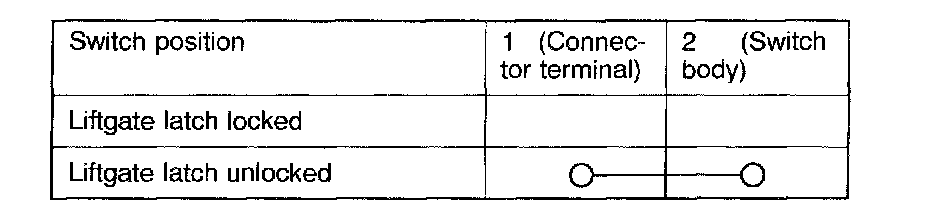

[Vehicles without theft-alarm system]
