Checking the Circuit and Individual Part

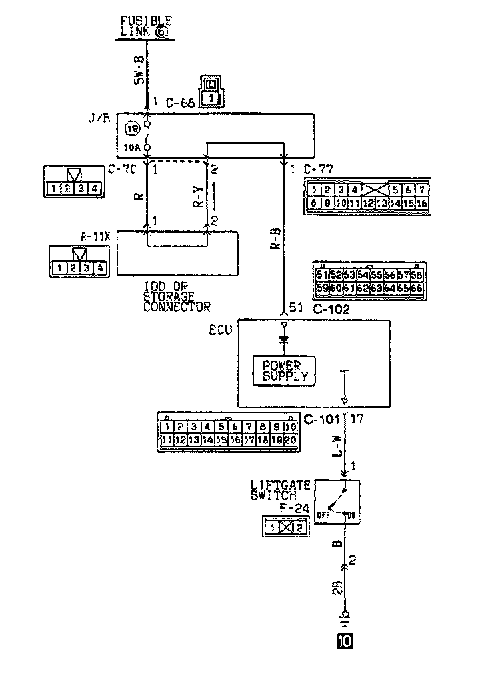

LIFTGATE SWITCH INPUT CIRCUIT

Description of operation
When the liftgate is closed (the liftgate switch is switched R OFF), HIGH-level signals are sent to the ECU. When the liftgate is opened (the liftgate switch is switched R ON), LOW-level signals are sent to the ECU.

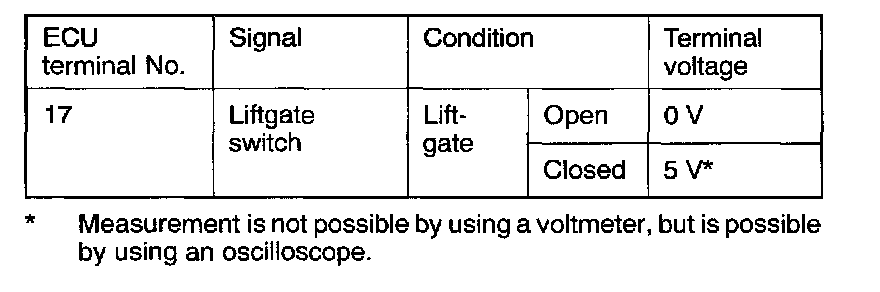

ECU terminal voltage (Connection condition of the ECU connector).
