Removal and Installation

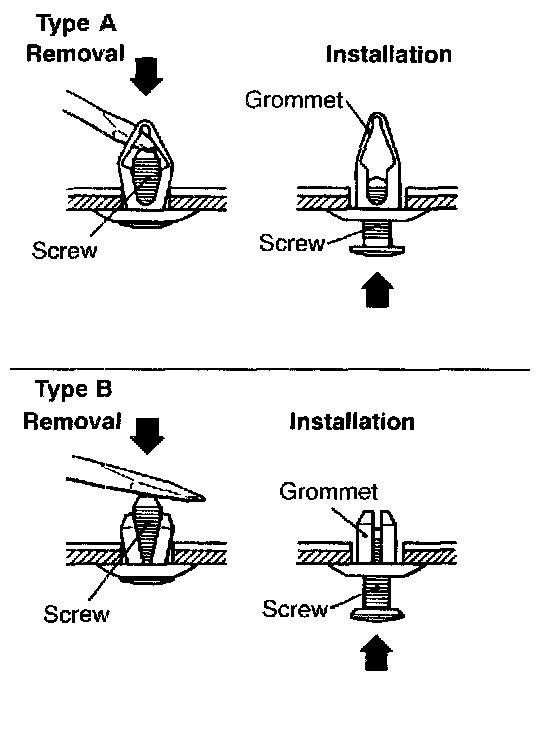

REMOVAL AND INSTALLATION OF CLIP WITH SCREW

Normally remove the clip with a Phillips screwdriver. If, however, there is enough space to insert a screwdriver or the like behind the clip, use the following procedure for ease of work.

1. Removal
Using a screwdriver or the like, press the screw from the inside of the bumper to remove the clip.

2. Installation
With the grommet inserted in the hole, press the screw in.

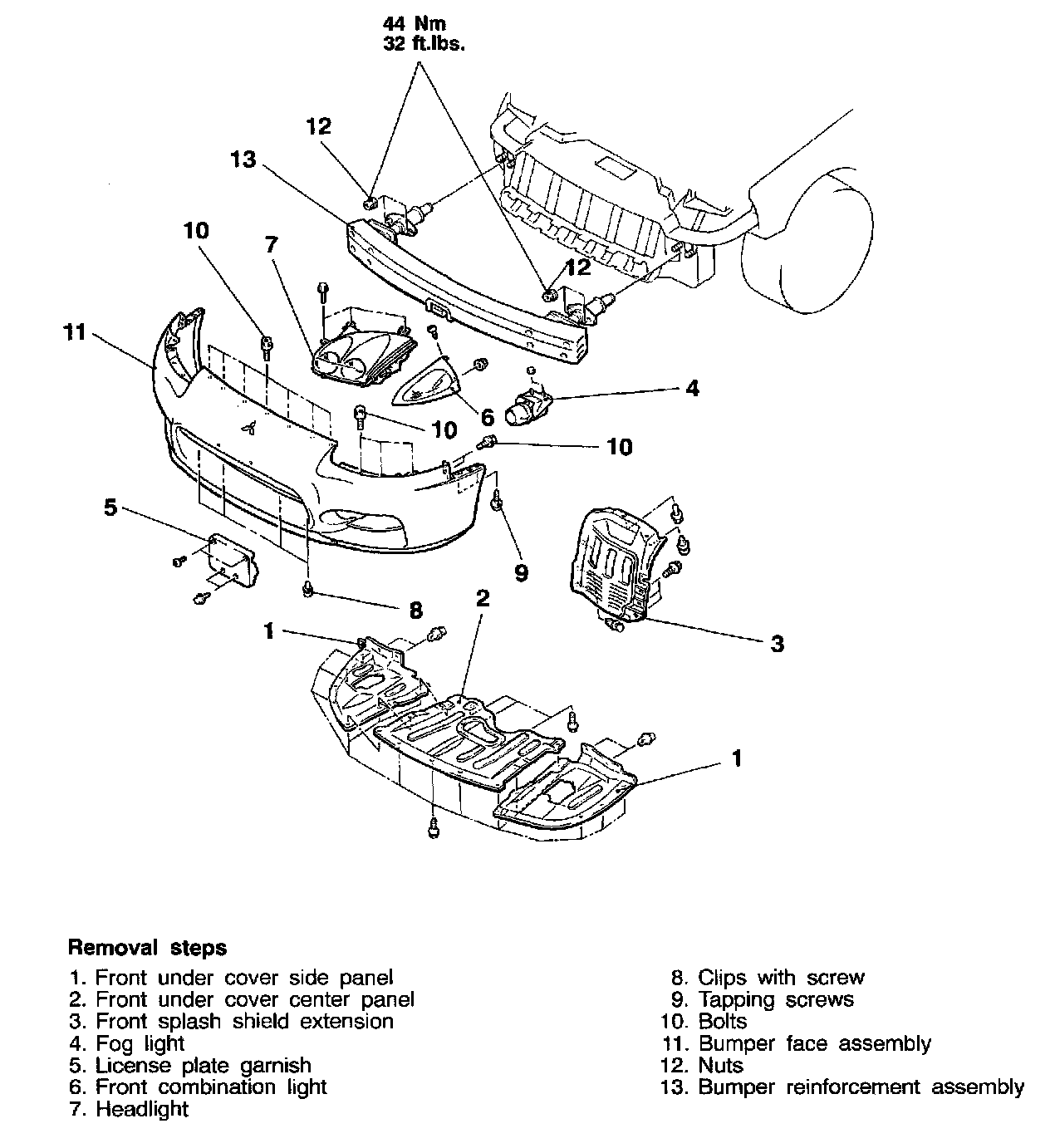

REMOVAL AND INSTALLATION
