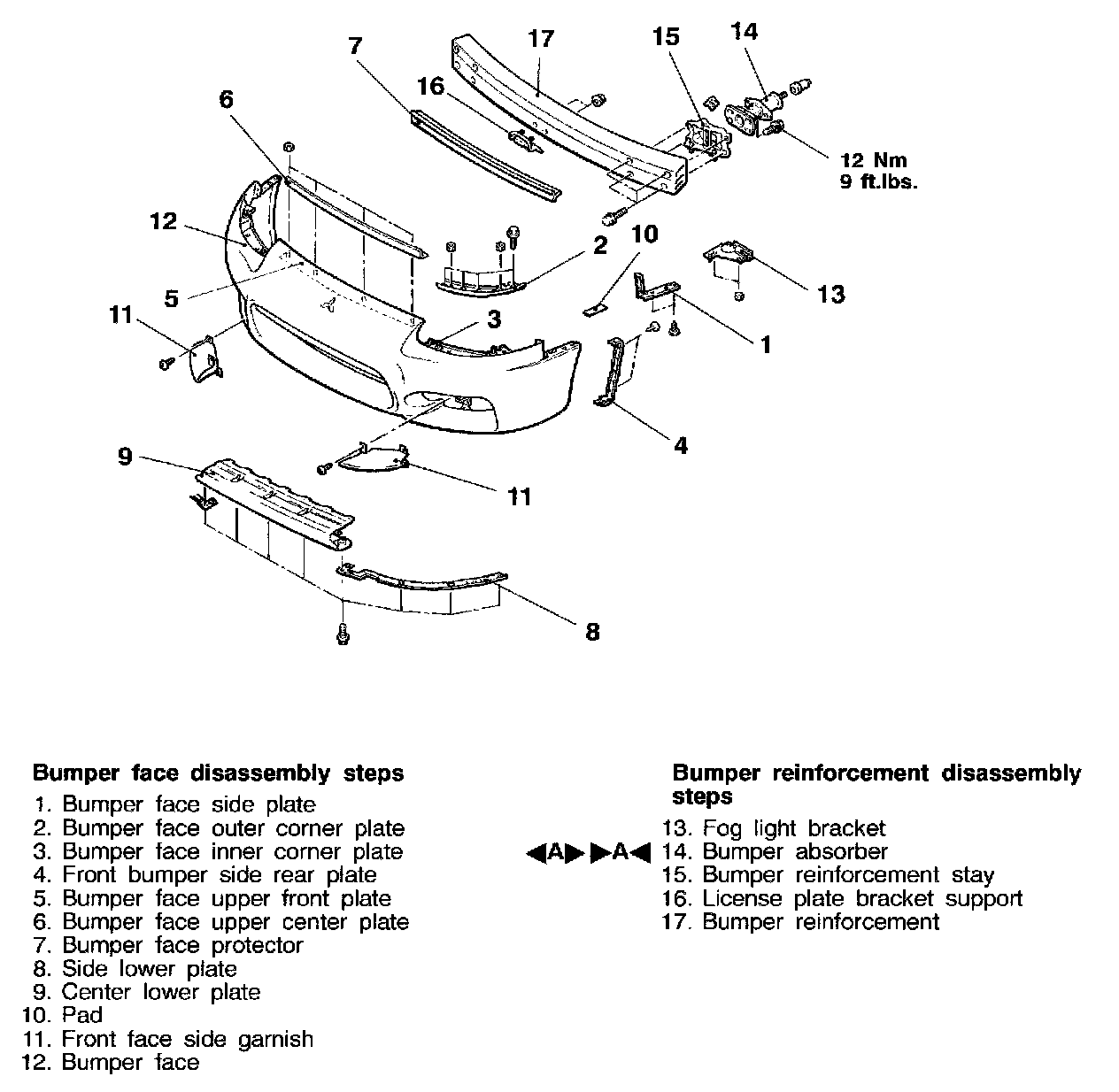

Disassembly and Assembly

DISASSEMBLY AND REASSEMBLY

DISASSEMBLY SERVICE POINT




BUMPER ABSORBER REMOVAL

CAUTION:
1. Do not attempt to repair a bumper absorber that has been compressed in an accident; replace it with a new one.

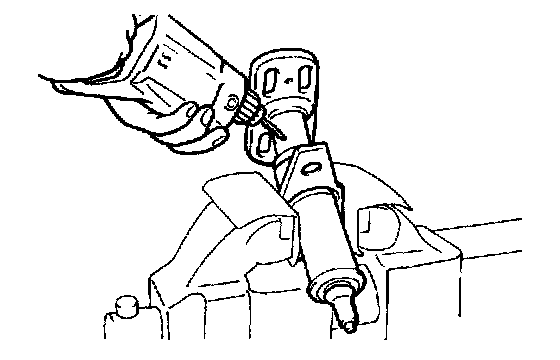

2. Before discarding the bumper absorber, drill a 3 mm (0.13 in.) diameter hole to discharge the gas contained in the unit. Be sure to wear safety goggles while performing this operation as the gas is not harmful but chips may be ejected with it.
3. If the bumper absorber is to be discarded, do not burn it.

REASSEMBLY SERVICE POINT

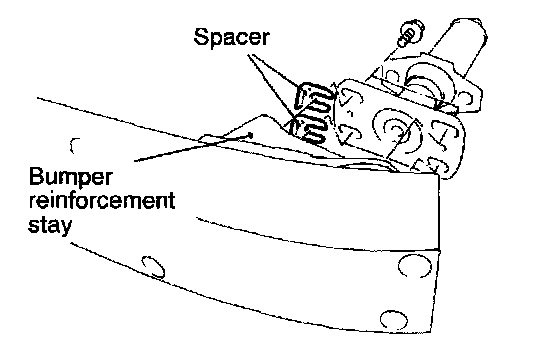

>A< BUMPER ABSORBER INSTALLATION
If the squareness between the bumper reinforcement stay and the bumper absorber is improper, adjust it by putting a spacer between them.
