Antenna Control Module: Testing and Inspection

MOTOR ANTENNA CONTROL UNIT INSPECTION

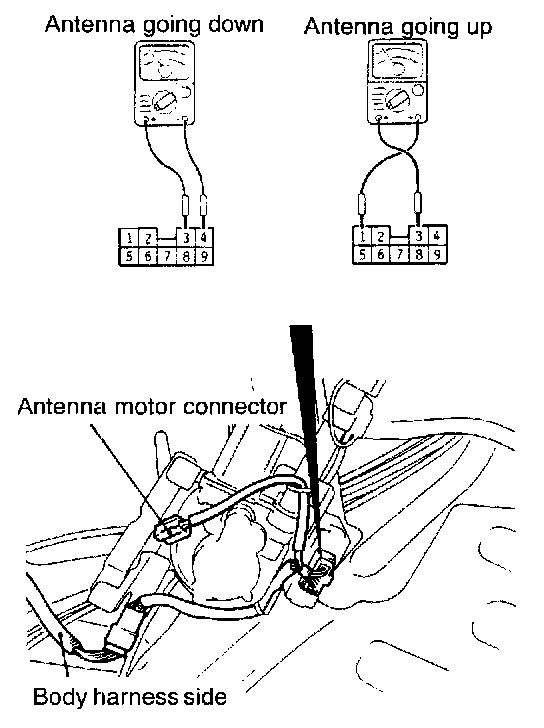

1. Connect the harness connector to the motor antenna. (Body harness)
2. Disconnect the antenna motor connector.

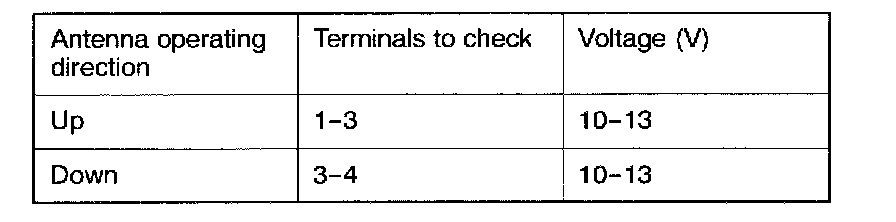

3. With the ignition switch in the ACC or ON position, operate the radio switch and check the voltage between the terminals during the period when the antenna is going up or going down.
