Lock Cylinder Switch: Testing and Inspection

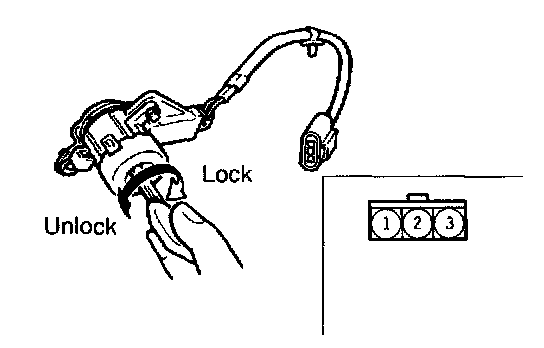

DOOR KEY CYLINDER UNLOCK SWITCH CHECK

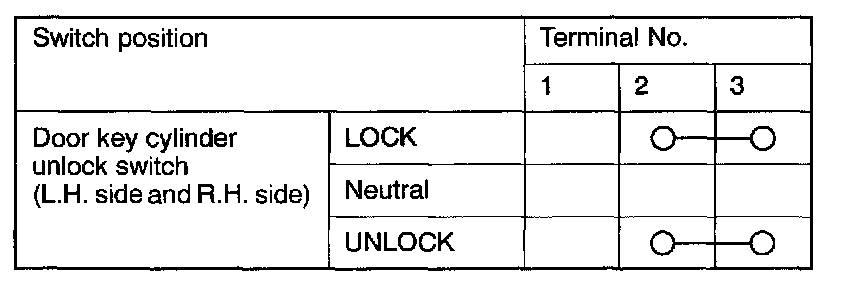

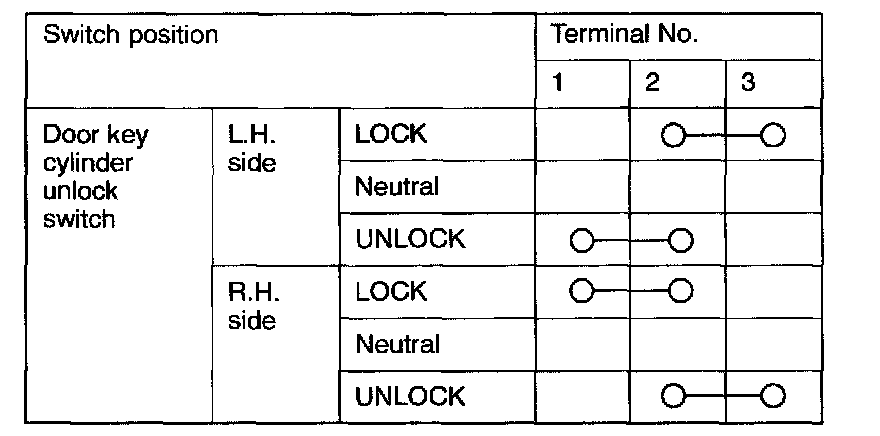

Insert the key and turn it to the LOCK or UNLOCK position to check for continuity as follows:
or
