Washer Fluid Level Indicator: Testing and Inspection

WASHER FLUID LEVEL SENSOR CHECK

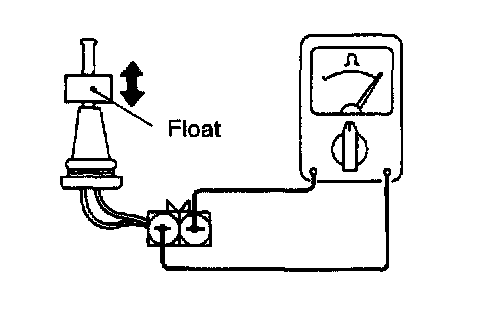

1. Connect a circuit tester to the connector of the level sensor as shown.
2. Check that when the float is moved down, the circuit is closed and that when the float is moved up, the circuit is opened.
